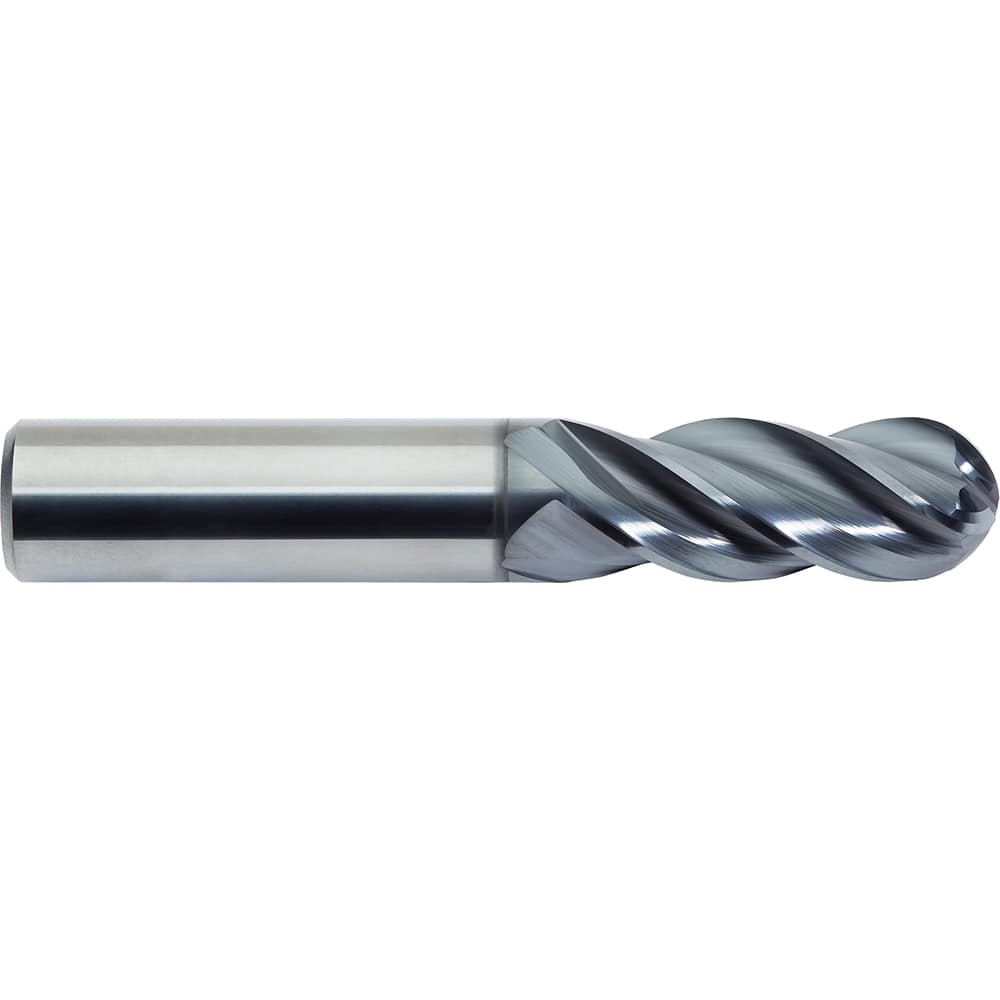

M.A. Ford - Ball End Mills; Mill Diameter (mm): 8.00 ; Mill Diameter (Decimal Inch): 0.3150 ; Number of Flutes: 4 ; Length of Cut (mm): 19.0000 ; Length of Cut (Decimal Inch): 0.7500 ; Material: Solid Carbide
Item #: 18723775
Brand: M.A. Ford
Model #: 279M0800B
Product Specifications
Ball End Mills; Mill Diameter (mm): 8.00 ; Mill Diameter (Decimal Inch): 0.3150 ; Number of Flutes: 4 ; Length of Cut (mm): 19.0000 ; Length of Cut (Decimal Inch): 0.7500 ; Material: Solid Carbide
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Number of Flutes | 4 |
| Length of Cut (mm) | 19.0000 |
| Length of Cut (Decimal Inch) | 0.7500 |
| Material | Solid Carbide |
| Overall Length (mm) | 63.0000 |
| Overall Length (Decimal Inch) | 2.48030 |
| Shank Diameter (mm) | 8.0000 |
| Finish/Coating | ALtima Blaze |
| Single or Double End | Single |
| Helix Angle | 35.00/38.00; Variable |
| Variable Index | Yes |
| Variable Helix | Yes |
| Minimum Helix Angle | 35 |
| Maximum Helix Angle | 38 |
| Nose Radius (Decimal Inch) | 0.1575 |
| Helix Style | Medium High |
| Flute Type | Helical |
| Length Type | Standard |
| Series/List | 279 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
