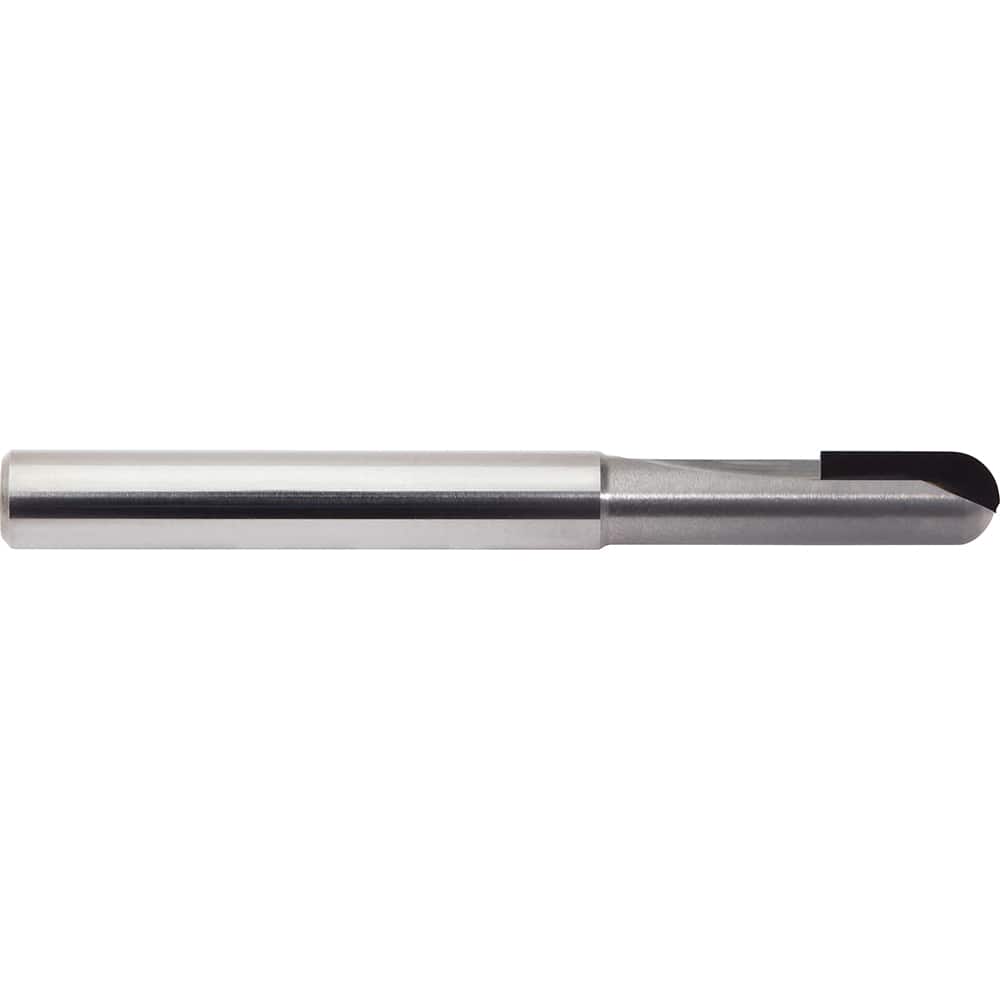

Ball End Mill: 0.1575″ Dia, 0.25″ LOC, 1 Flute, Polycrystalline Diamond 50 mm OAL, 4 mm Shank Dia, 0 ° Helix, Polycrystaline Diamond Coated, Single End, Series DEB
Item #: 18723759
Brand: M.A. Ford?
Model #: DE1BM0400
Product Specifications
| Mill Diameter (Decimal Inch) | 0.1575 |
| Mill Diameter (mm) | 4.00 |
| Length of Cut (mm) | 6.00 |
| End Mill Material | Polycrystalline Diamond |
| Chipbreaker | No |
| Helix Angle | 0 |
| Variable Index | No |
| Length Of Cut Range (Decimal Inch) | 0.2000 to 0.4000 |
| Variable Helix | No |
| Length Type | Standard |
| Shank Diameter (mm) | 4.00 |
| Neck Diameter (Decimal Inch) | 3.6800 |
| Nose Radius (Decimal Inch) | 0.0787 |
| Neck Length (Inch) | 17 |
| Neck Length (Decimal Inch) | 17.0000 |
| Overall Length (Decimal Inch) | 1.9685 |
| Overall Length (mm) | 50.00 |
| Flute Direction | Right Hand |
| Cutting Direction | Right Hand |
| Series | DEB |
| Flute Type | Straight |
| Centercutting | Yes |
| Single Or Double End | Single |
| Number Of Flutes | 1 |
| Coating/Finish | Polycrystaline Diamond |
| Length Of Cut (Decimal Inch - 4 Decimals) | 0.2500 |
