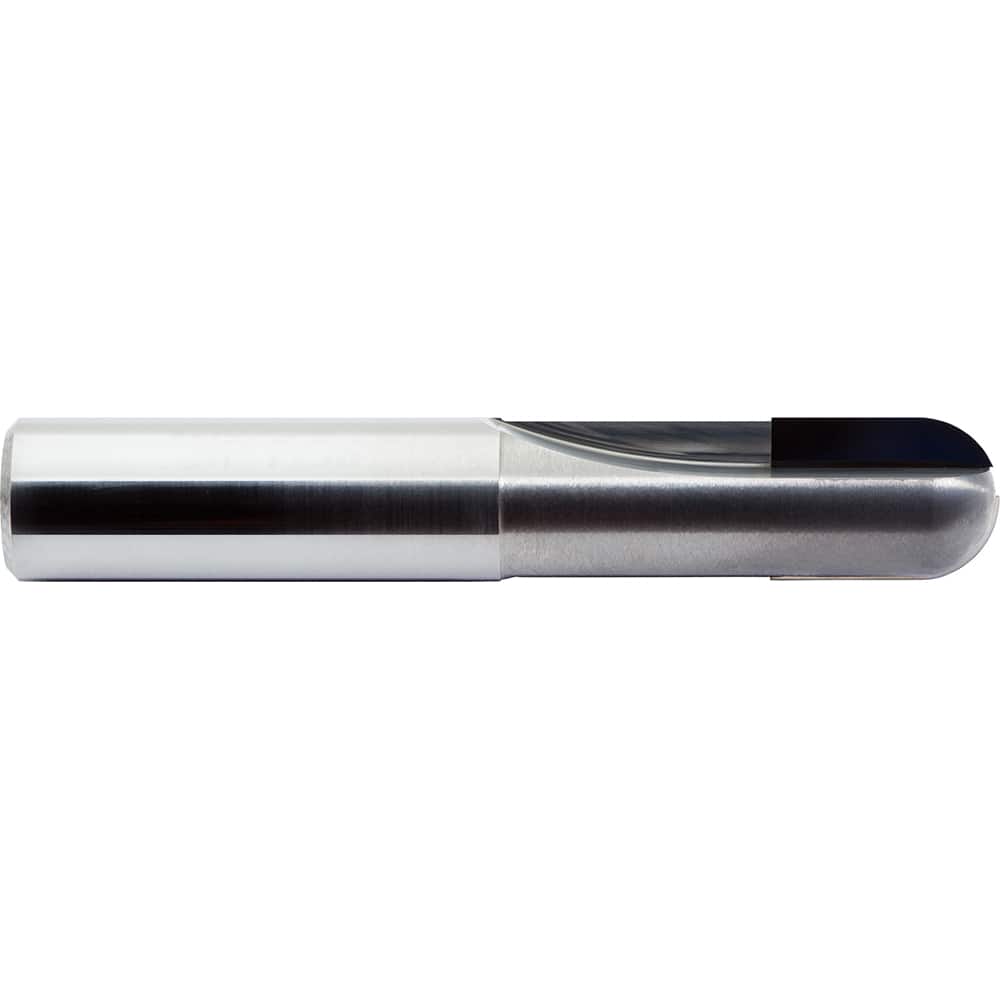

M.A. Ford - Ball End Mills; Mill Diameter (mm): 8.00 ; Mill Diameter (Decimal Inch): 0.3150 ; Number of Flutes: 2 ; Length of Cut (mm): 10.0000 ; Length of Cut (Decimal Inch): 0.4000 ; Material: PCD
Item #: 18723635
Brand: M.A. Ford
Model #: DE2BM0800
Product Specifications
Ball End Mills; Mill Diameter (mm): 8.00 ; Mill Diameter (Decimal Inch): 0.3150 ; Number of Flutes: 2 ; Length of Cut (mm): 10.0000 ; Length of Cut (Decimal Inch): 0.4000 ; Material: PCD
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 10.0000 |
| Length of Cut (Decimal Inch) | 0.4000 |
| Material | PCD |
| Overall Length (mm) | 64.0000 |
| Overall Length (Decimal Inch) | 2.51970 |
| Shank Diameter (mm) | 8.0000 |
| Finish/Coating | Polycrystaline Diamond |
| Single or Double End | Single |
| Helix Angle | 0 |
| Variable Index | No |
| Variable Helix | No |
| Neck Length (Decimal Inch) | 27.0000 |
| Nose Radius (Decimal Inch) | 0.1575 |
| Flute Type | Straight |
| Length Type | Standard |
| Series/List | DEB |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
