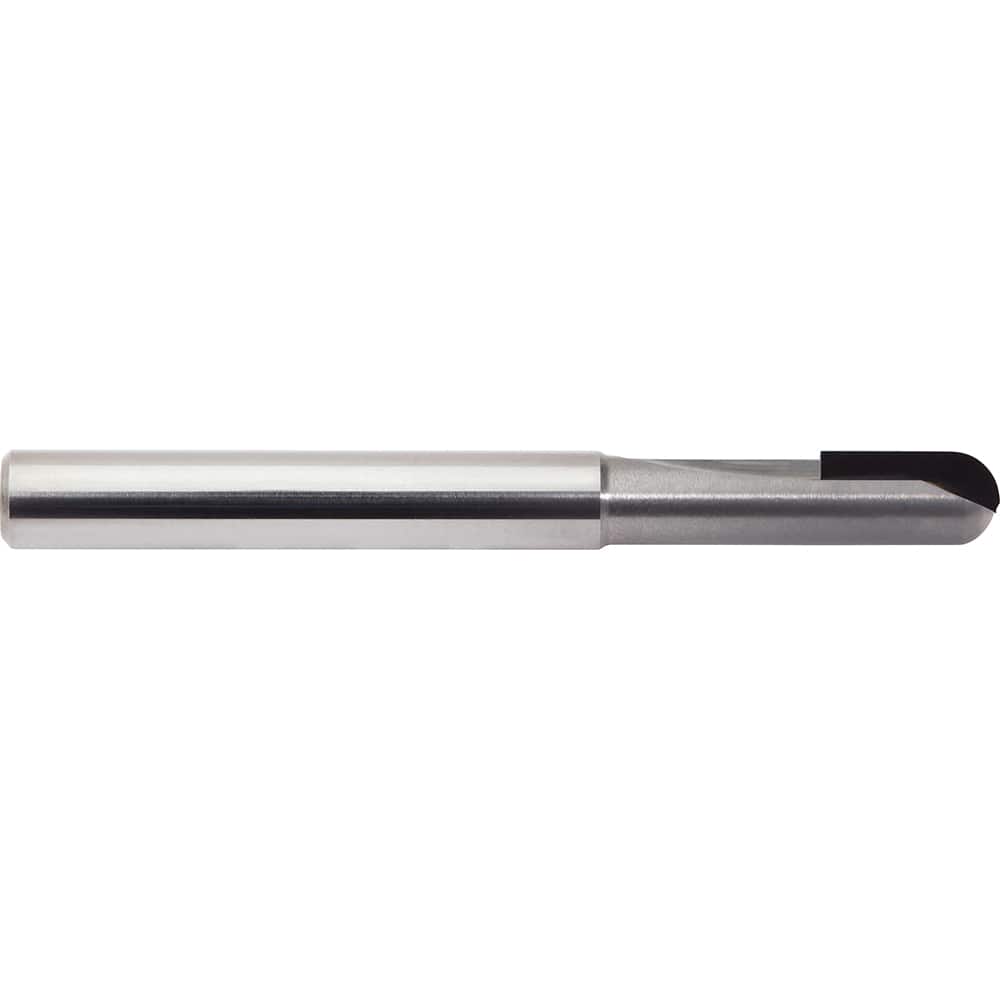

M.A. Ford - Ball End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; Number of Flutes: 1 ; Length of Cut (Inch): 5/16 ; Length of Cut (Decimal Inch): 0.3125 ; Material: PCD
Item #: 18723429
Brand: M.A. Ford
Model #: DE1B1875
Product Specifications
Ball End Mills; Mill Diameter (Inch): 3/16 ; Mill Diameter (Decimal Inch): 0.1875 ; Number of Flutes: 1 ; Length of Cut (Inch): 5/16 ; Length of Cut (Decimal Inch): 0.3125 ; Material: PCD
| Mill Diameter (Inch) | 3/16 |
| Mill Diameter (Decimal Inch) | 0.1875 |
| Number of Flutes | 1 |
| Length of Cut (Inch) | 5/16 |
| Length of Cut (Decimal Inch) | 0.3125 |
| Material | PCD |
| Overall Length (Inch) | 2 |
| Overall Length (Decimal Inch) | 2.00000 |
| Shank Diameter (Inch) | 3/16 |
| Finish/Coating | Polycrystaline Diamond |
| Single or Double End | Single |
| Helix Angle | 0 |
| Variable Index | No |
| Variable Helix | No |
| Nose Radius (Decimal Inch) | 0.0937 |
| Flute Type | Straight |
| Length Type | Standard |
| Series/List | DEB |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
