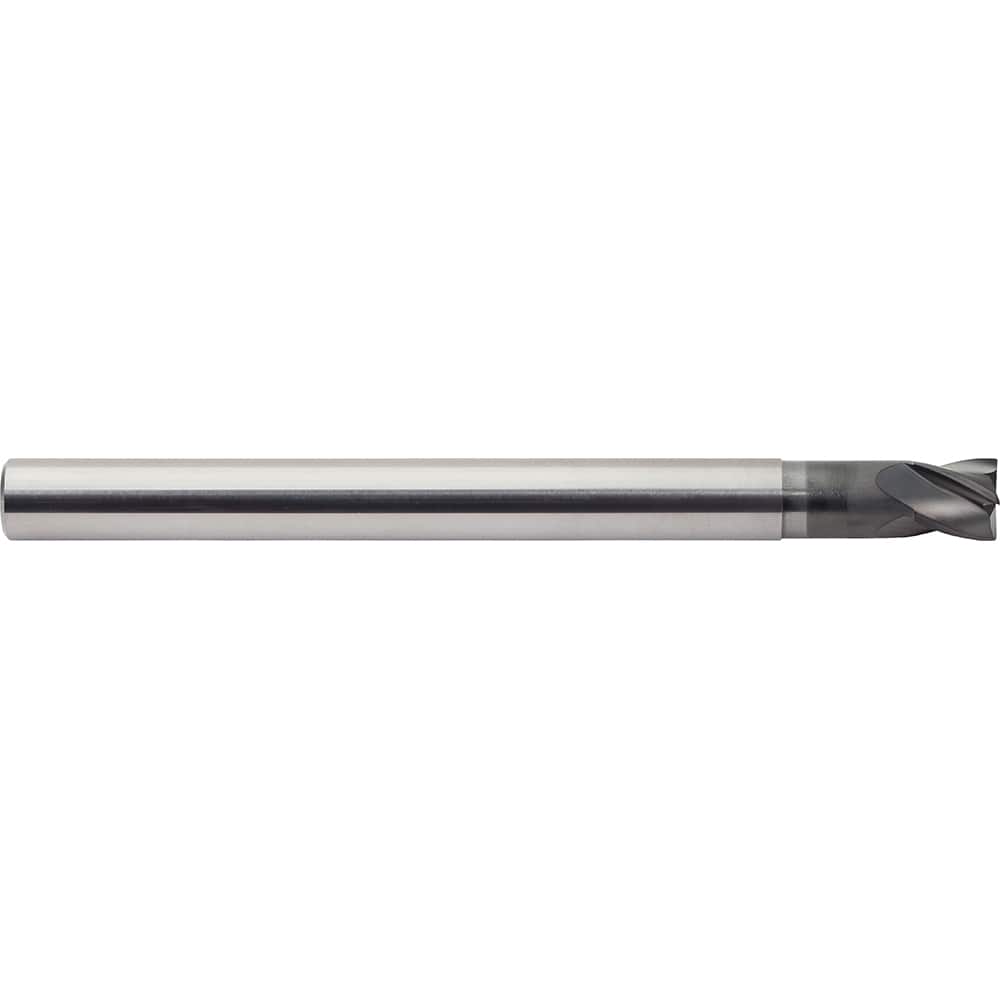

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; End Type: Corner Radius ; Corner Radius (Inch): .015 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 18723320
Brand: M.A. Ford
Model #: 163S500R.015N2.
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 1/2 ; Mill Diameter (Decimal Inch): 0.5000 ; End Type: Corner Radius ; Corner Radius (Inch): .015 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (Inch) | 1/2 |
| Mill Diameter (Decimal Inch) | 0.5000 |
| End Type | Corner Radius |
| Corner Radius (Inch) | .015 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | GemX |
| Length of Cut (Inch) | 1/2 |
| Shank Diameter (Inch) | 1/2 |
| Overall Length (Inch) | 6 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 30 |
| Variable Index | No |
| Variable Helix | No |
| Neck Diameter (mm) | 0.480 |
| Neck Diameter (Decimal Inch) | 0.4800 |
| Single or Double End | Single |
| Length Type | Stub |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Shank Type | Straight |
| Series/List | 163 |
| Chipbreaker | No |
