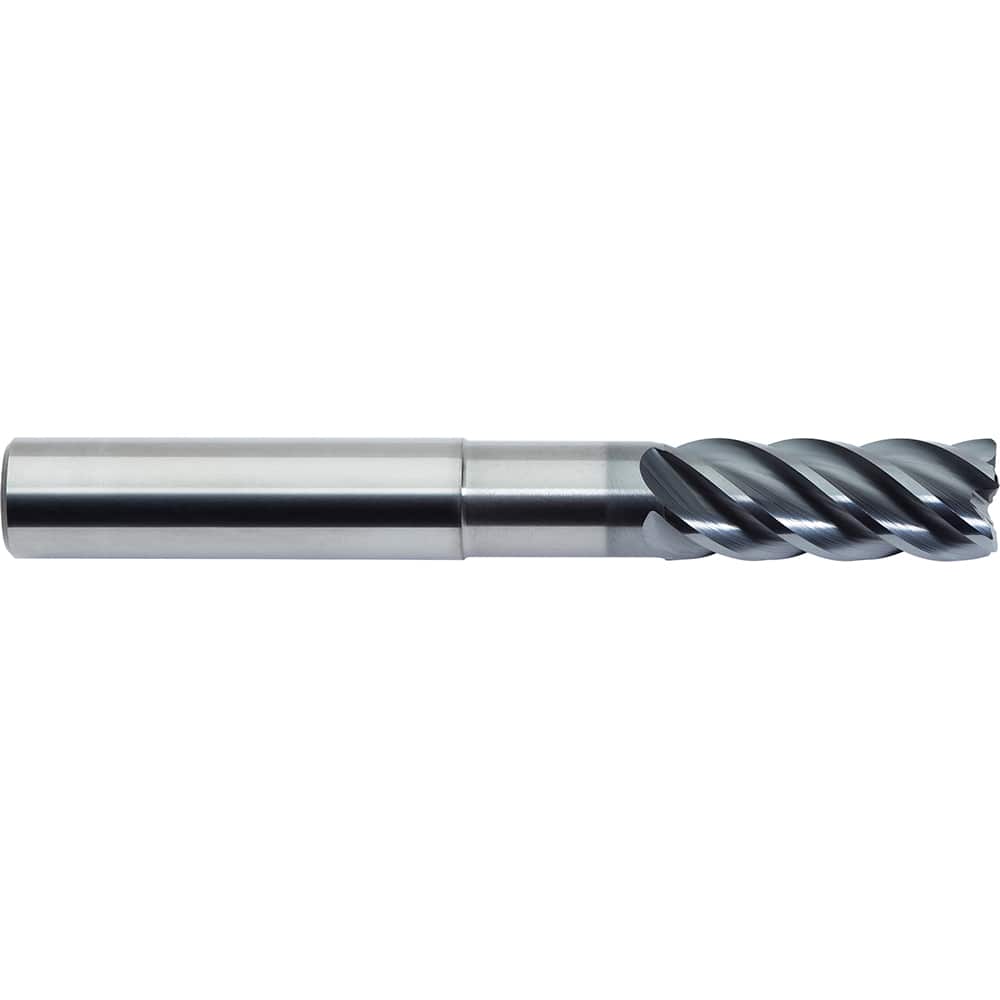

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 20.00 ; Mill Diameter (Decimal Inch): 0.7874 ; End Type: Corner Radius ; Corner Radius (mm): 3.00 ; Corner Radius (Inch): .118 ; Number of Flutes: 5
Item #: 18722389
Brand: M.A. Ford
Model #: 278 2000N4-3.0R
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 20.00 ; Mill Diameter (Decimal Inch): 0.7874 ; End Type: Corner Radius ; Corner Radius (mm): 3.00 ; Corner Radius (Inch): .118 ; Number of Flutes: 5
| Mill Diameter (mm) | 20.00 |
| Mill Diameter (Decimal Inch) | 0.7874 |
| End Type | Corner Radius |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Inch) | .118 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | ALtima Blaze |
| Length of Cut (mm) | 40.0000 |
| Shank Diameter (mm) | 20.0000 |
| Overall Length (mm) | 133.0000 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 40 |
| Variable Index | Yes |
| Variable Helix | No |
| Neck Diameter (mm) | 0.756 |
| Neck Diameter (Decimal Inch) | 19.2000 |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Shank Type | Straight |
| Series/List | 278 |
| Chipbreaker | No |
