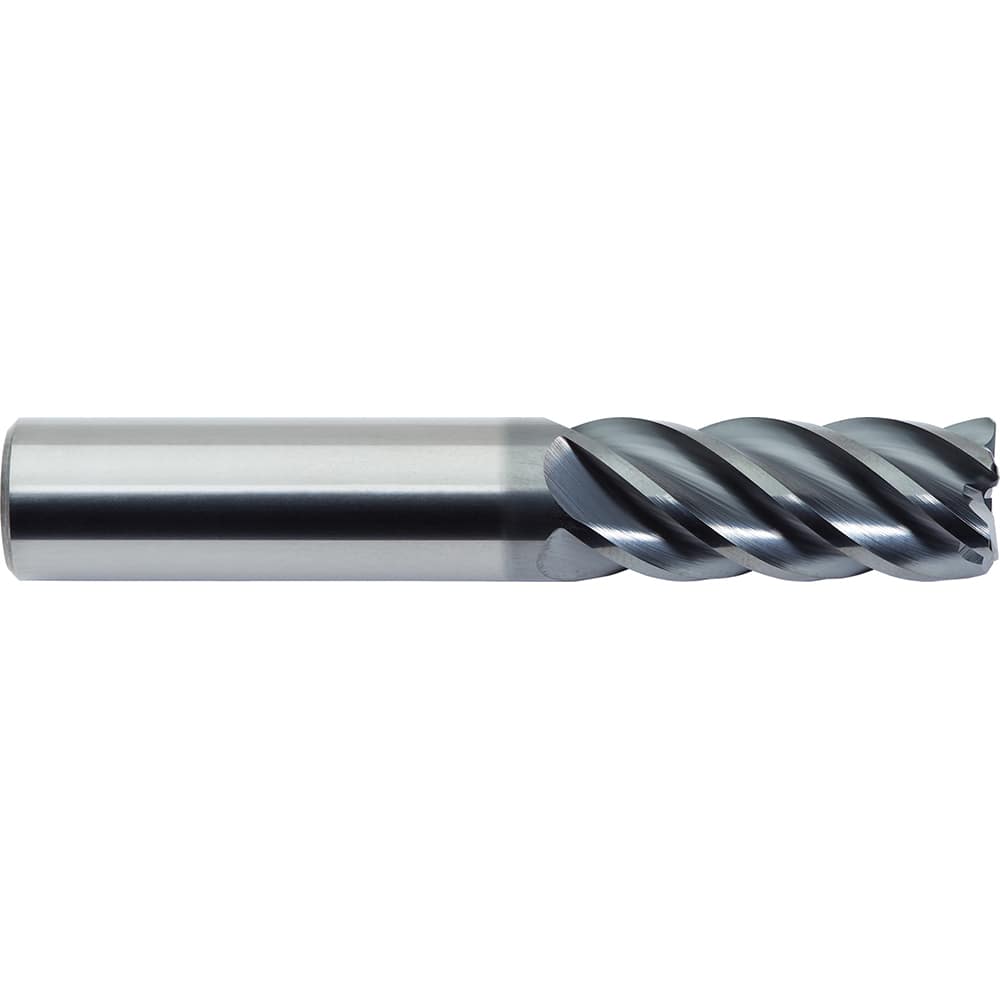

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/16 ; Mill Diameter (Decimal Inch): 0.3125 ; End Type: Corner Radius ; Corner Radius (Inch): .030 ; Number of Flutes: 5 ; Material: Solid Carbide
Item #: 18721175
Brand: M.A. Ford
Model #: 27831204B
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/16 ; Mill Diameter (Decimal Inch): 0.3125 ; End Type: Corner Radius ; Corner Radius (Inch): .030 ; Number of Flutes: 5 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| End Type | Corner Radius |
| Corner Radius (Inch) | .030 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | ALtima Blaze |
| Length of Cut (Inch) | 7/16 |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 40 |
| Variable Index | Yes |
| Variable Helix | No |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Shank Type | Straight |
| Series/List | 278 |
| Chipbreaker | No |
