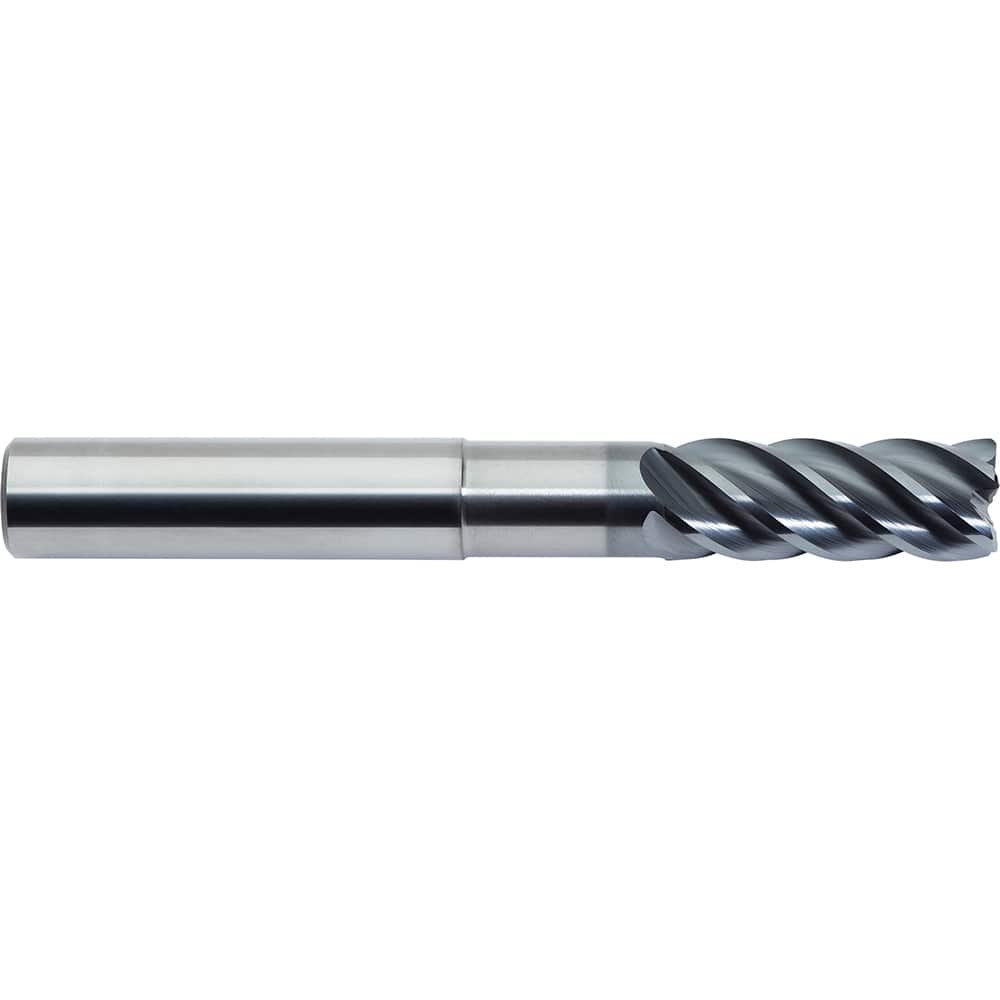

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 10.00 ; Mill Diameter (Decimal Inch): 0.3937 ; End Type: Corner Radius ; Corner Radius (mm): 2.00 ; Corner Radius (Inch): .079 ; Number of Flutes: 5
Item #: 18721043
Brand: M.A. Ford
Model #: 278 1000N3-2.0R
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 10.00 ; Mill Diameter (Decimal Inch): 0.3937 ; End Type: Corner Radius ; Corner Radius (mm): 2.00 ; Corner Radius (Inch): .079 ; Number of Flutes: 5
| Mill Diameter (mm) | 10.00 |
| Mill Diameter (Decimal Inch) | 0.3937 |
| End Type | Corner Radius |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Inch) | .079 |
| Number of Flutes | 5 |
| Material | Solid Carbide |
| Finish/Coating | ALtima Blaze |
| Length of Cut (mm) | 22.0000 |
| Shank Diameter (mm) | 10.0000 |
| Overall Length (mm) | 72.0000 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 40 |
| Variable Index | Yes |
| Variable Helix | No |
| Neck Diameter (mm) | 0.386 |
| Neck Diameter (Decimal Inch) | 9.8000 |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Shank Type | Straight |
| Series/List | 278 |
| Chipbreaker | No |
