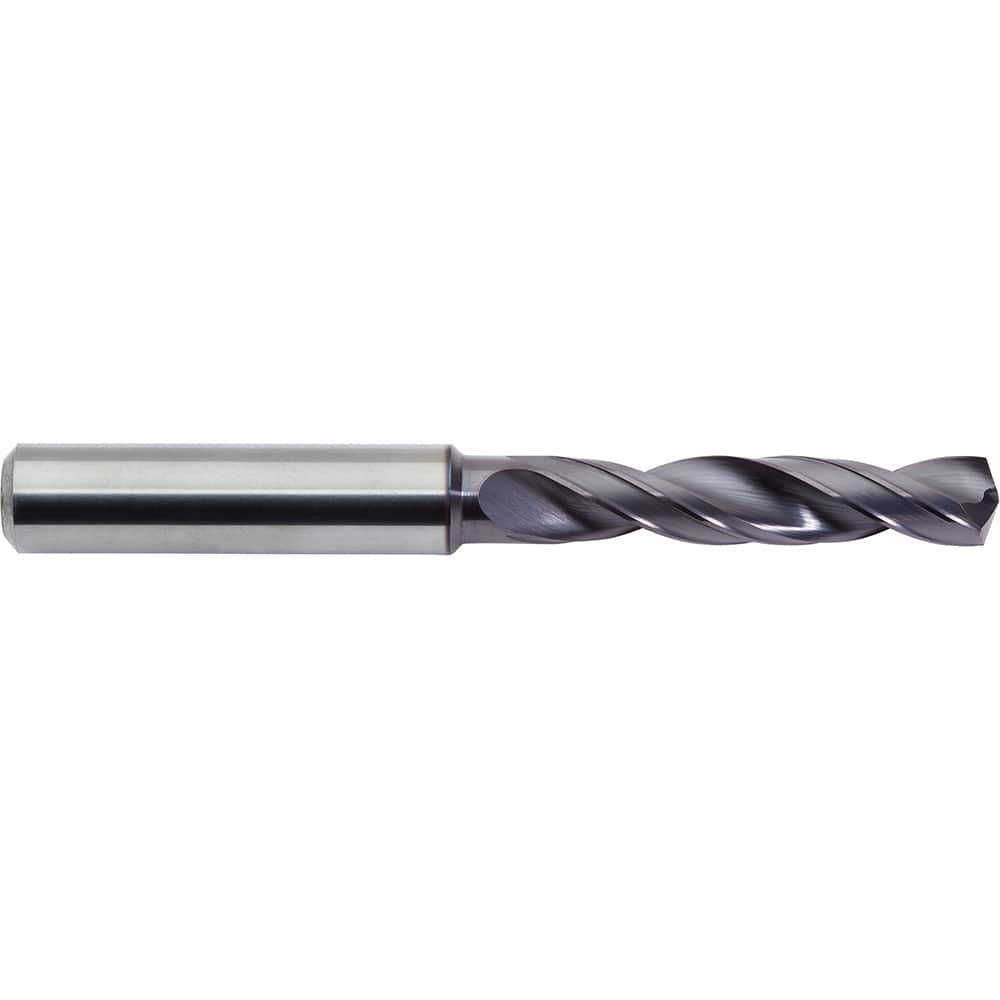

Screw Machine Length Drill Bit: 0.221″ Dia, 142 °, Solid Carbide ALtima Plus Finish, Right Hand Cut, Helical Flute, Straight-Cylindrical Shank
Item #: 18701292
Brand: M.A. Ford?
Model #: CXDSS2210AP
Product Specifications
| Drill Bit Size (Wire) | #2 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | ALtima Plus |
| Drill Point Angle | 142 |
| Spiral Type | Right Hand |
| Flute Type | Helical |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.2500 |
| Drill Bit Size (Decimal Inch) | 0.2210 |
| Overall Length (Decimal Inch) | 2.5980 |
| Number of Margins | 2 |
| Drill Length Type | Stub |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Size Range (Decimal Inch) | 0.2000 to 0.2500 |
| Specification Number | DIN 6537K |
| Specification Designation | DIN |
