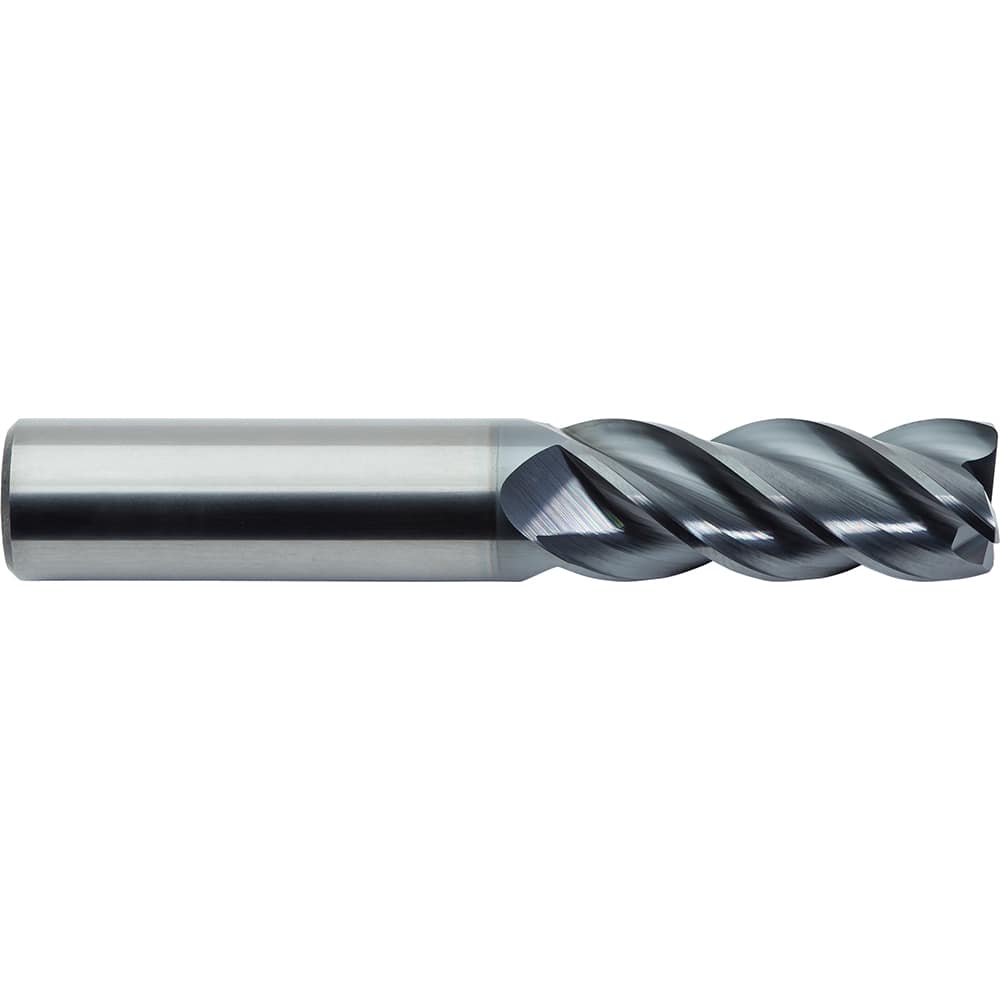

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/16 ; Mill Diameter (Decimal Inch): 0.3125 ; End Type: Corner Radius ; Corner Radius (Inch): .060 ; Number of Flutes: 4 ; Material: Solid Carbide
Item #: 18689901
Brand: M.A. Ford
Model #: 27731216B
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (Inch): 5/16 ; Mill Diameter (Decimal Inch): 0.3125 ; End Type: Corner Radius ; Corner Radius (Inch): .060 ; Number of Flutes: 4 ; Material: Solid Carbide
| Mill Diameter (Inch) | 5/16 |
| Mill Diameter (Decimal Inch) | 0.3125 |
| End Type | Corner Radius |
| Corner Radius (Inch) | .060 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | ALtima Blaze |
| Length of Cut (Inch) | 13/16 |
| Shank Diameter (Inch) | 5/16 |
| Overall Length (Inch) | 2-1/2 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 38; 41; Variable |
| Variable Index | Yes |
| Variable Helix | Yes |
| Single or Double End | Single |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 41 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Shank Type | Straight |
| Series/List | 277 |
| Chipbreaker | No |
