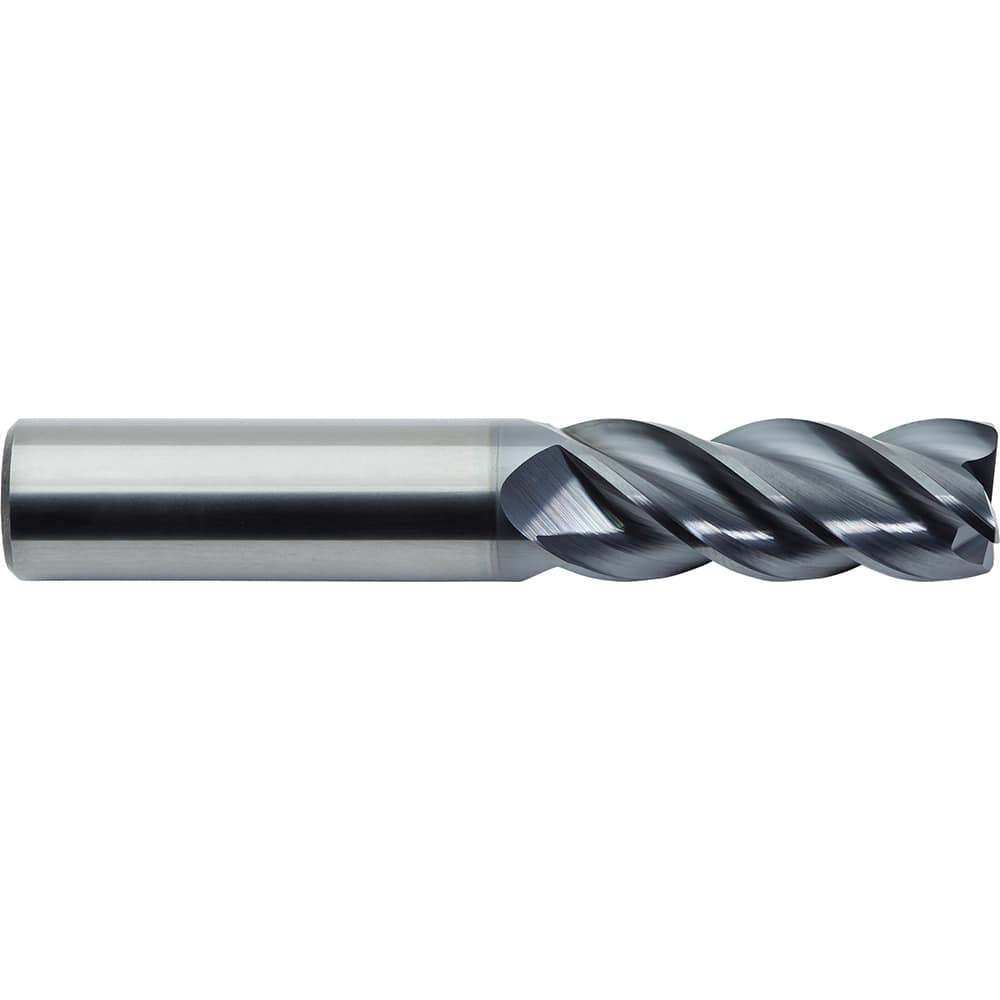

M.A. Ford - Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 3.00 ; Mill Diameter (Decimal Inch): 0.1181 ; End Type: Corner Radius ; Corner Radius (mm): 0.250 ; Corner Radius (Inch): .010 ; Number of Flutes: 4
Item #: 18689679
Brand: M.A. Ford
Model #: 277 0300-0.25RB
Product Specifications
Corner Radius & Corner Chamfer End Mills; Mill Diameter (mm): 3.00 ; Mill Diameter (Decimal Inch): 0.1181 ; End Type: Corner Radius ; Corner Radius (mm): 0.250 ; Corner Radius (Inch): .010 ; Number of Flutes: 4
| Mill Diameter (mm) | 3.00 |
| Mill Diameter (Decimal Inch) | 0.1181 |
| End Type | Corner Radius |
| Corner Radius (mm) | 0.250 |
| Corner Radius (Inch) | .010 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | ALtima Blaze |
| Length of Cut (mm) | 8.0000 |
| Shank Diameter (mm) | 6.0000 |
| Overall Length (mm) | 57.0000 |
| Flute Type | Helical |
| Cutting Direction | Right Hand |
| Helix Angle | 38; 41; Variable |
| Variable Index | Yes |
| Variable Helix | Yes |
| Single or Double End | Single |
| Minimum Helix Angle | 38 |
| Maximum Helix Angle | 41 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Shank Type | Straight |
| Series/List | 277 |
| Chipbreaker | No |
