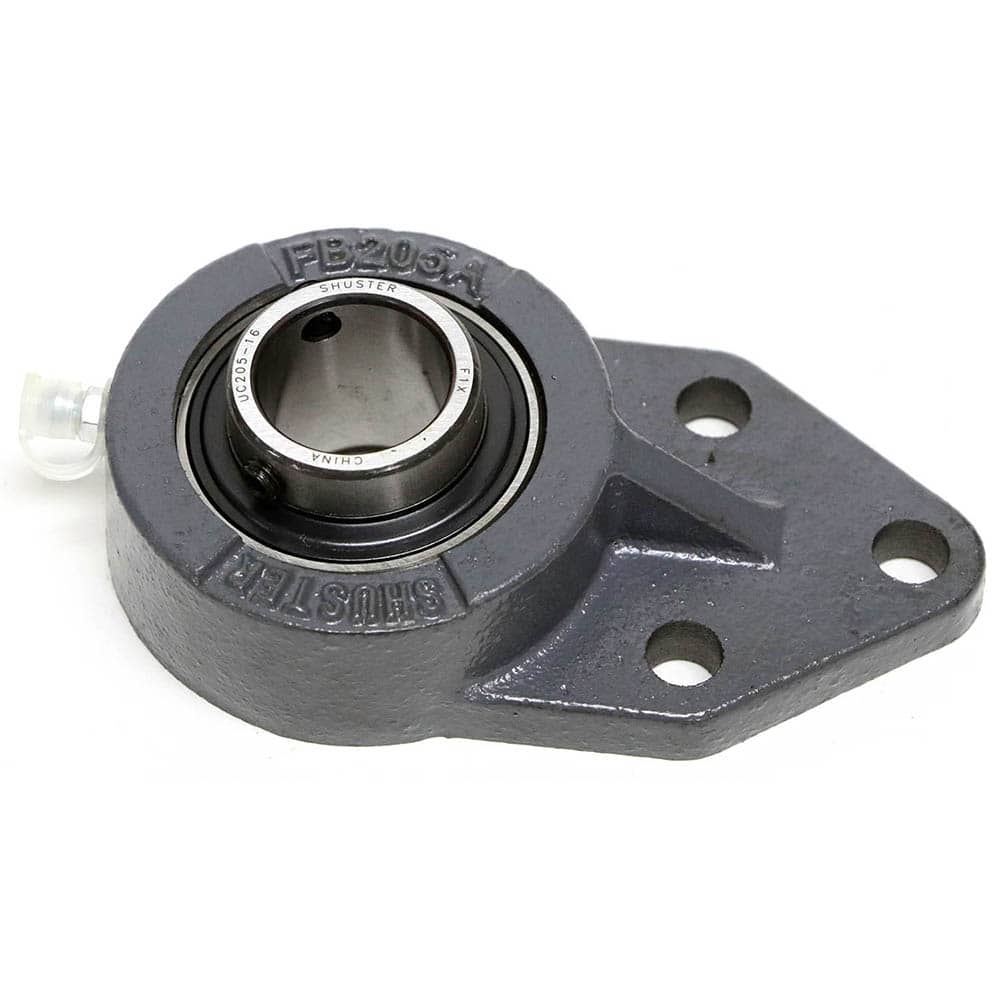

Shuster - UCFB205-14, 7/8" ID, 2-3/4" OAL x 4-3/4" OAH, 3-Bolt Flange Mounted Bearing
Item #: 18648691
Brand: Shuster
Model #: 06581992
Product Specifications
Type | 3-Bolt Flange Mounted Bearing |
Inside Diameter (Decimal Inch) | 0.8750 |
Inside Diameter (Inch) | 7/8 |
Width (Decimal Inch) | 1.4380 |
Width (mm) | 36.40 |
Overall Length (Inch) | 2-3/4 |
Overall Length (mm) | 69.9000 |
Overall Height (Inch) | 4-3/4 |
Overall Height (Decimal Inch) | 4.7500 |
Overall Height (mm) | 120.70000 |
Distance Between Mounting Hole Centers | 41.3000 |
Distance Between Mounting Hole Centers | 1.625 |
Material | Cast Iron Housing with Steel Bearing |
Lock Type | Set Screw |
