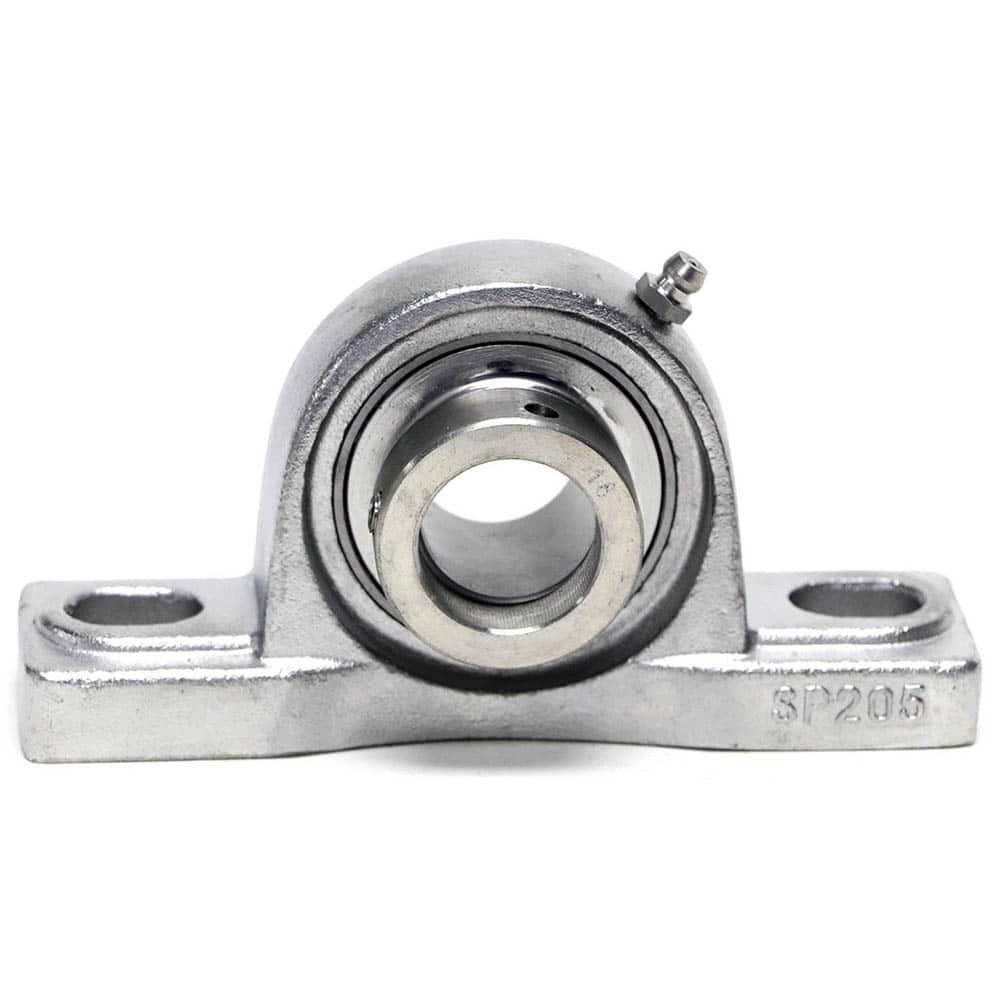

Shuster - SNASP206, 30mm ID, 164mm OAL x 83mm OAH46mm Wide, Ball Bearing Pillow Block
Item #: 18647750
Brand: Shuster
Model #: 07613140
Product Specifications
| Type | Ball Bearing Pillow Block |
| Inside Diameter (mm) | 30.0000 |
| Width (Decimal Inch) | 1.8110 |
| Width (mm) | 46.00 |
| Overall Length (mm) | 164.0000 |
| Overall Length (Decimal Inch) | 6.45300 |
| Overall Height (Decimal Inch) | 3.2660 |
| Overall Height (mm) | 83.00000 |
| Distance Between Mounting Hole Centers | 121.0000 |
| Distance Between Mounting Hole Centers | 4.750 |
| Material | Stanless Housing With Stainless Steel Bearing |
| Distance Between Base And Center | 42.9000 |
| Distance Between Base And Center | 1.6880 |
| Lock Type | Eccentric |
