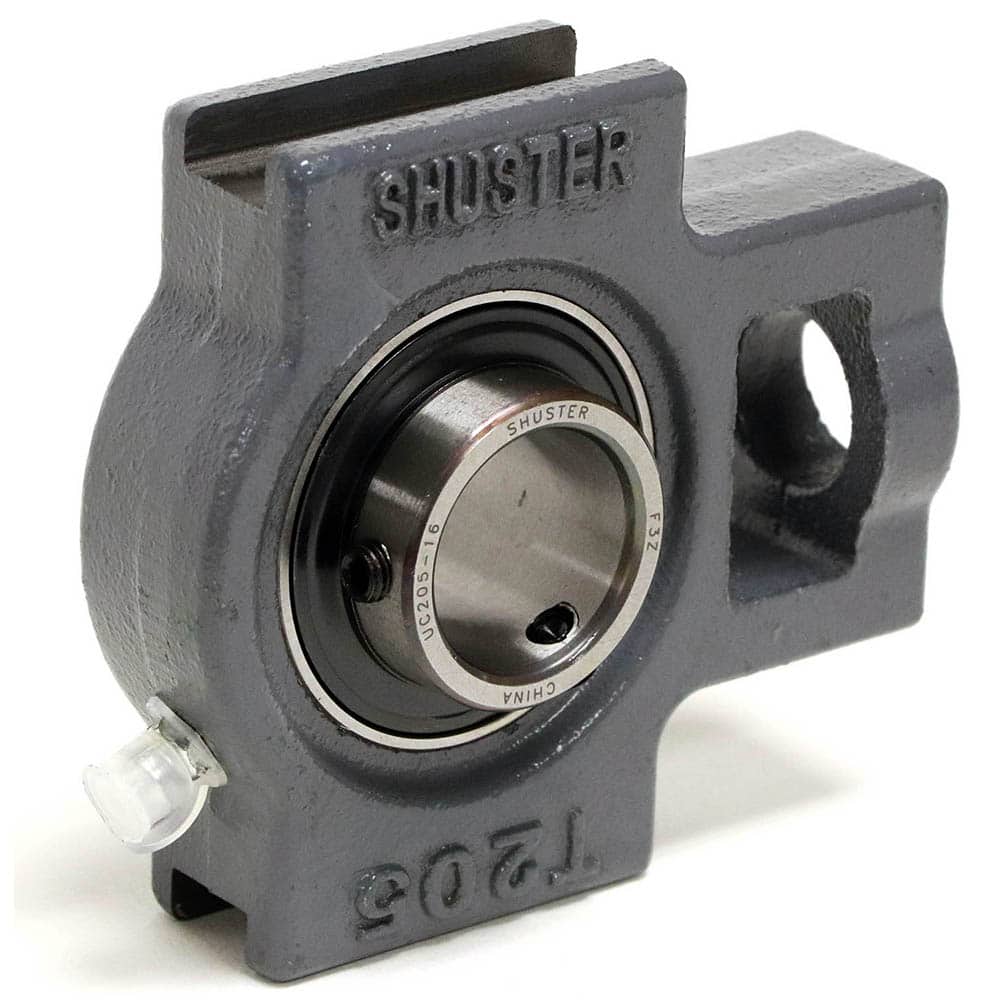

Shuster - UCT206-20, 1-1/4" ID, 102mm OAL x 113mm OAH x 1-1/2" Wide, Ball Bearing Take-Up Unit
Item #: 18647693
Brand: Shuster
Model #: 07561648
Product Specifications
| Type | Ball Bearing Take-Up Unit |
| Inside Diameter (Decimal Inch) | 1.2500 |
| Inside Diameter (Inch) | 1-1/4 |
| Width (Inch) | 1-1/2 |
| Width (mm) | 38.10 |
| Overall Length (mm) | 102.0000 |
| Overall Length (Decimal Inch) | 4.01500 |
| Overall Height (Decimal Inch) | 4.4380 |
| Overall Height (mm) | 113.00000 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 2.7500 |
| Distance Between Base And Center | 70.0000 |
| Lock Type | Set Screw |
