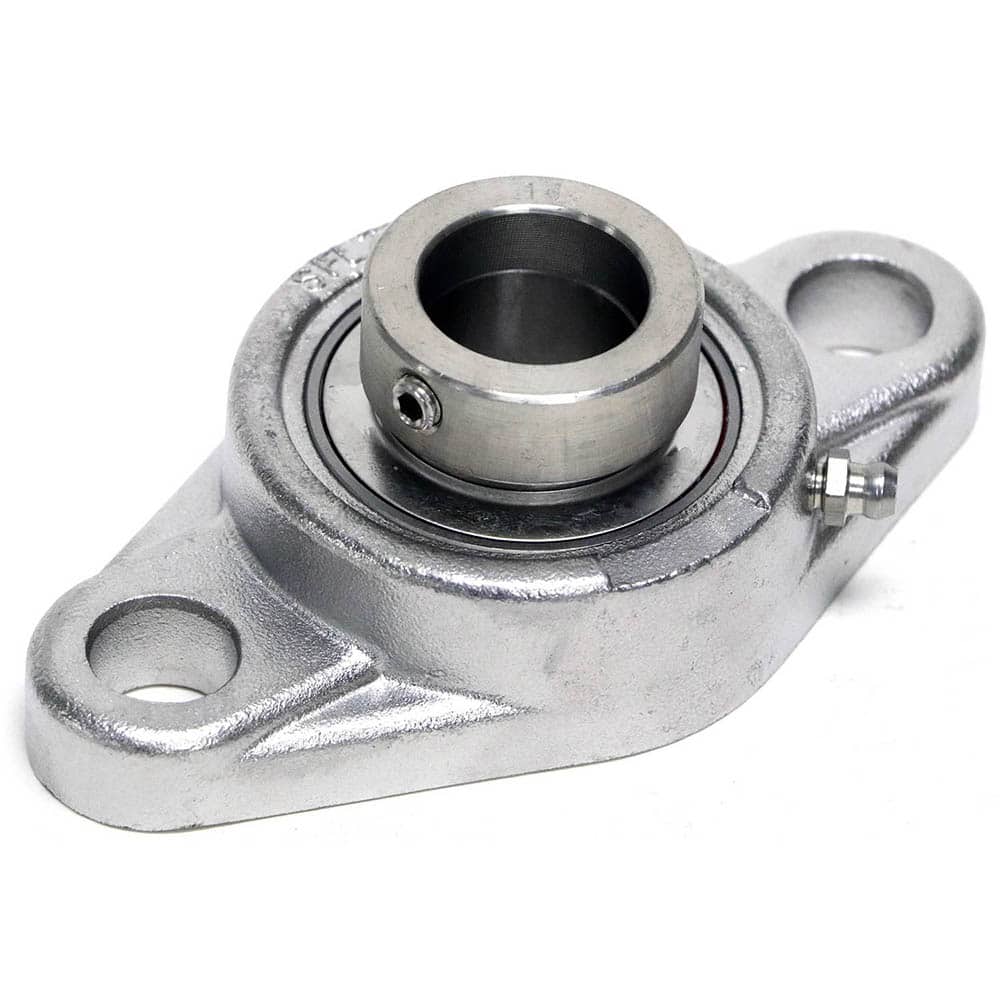

Shuster - SNASFL207-23, 1-7/16" ID, 90mm OAL x 161mm OAH51.3mm Wide, 2-Bolt Flange Bearing
Item #: 18647677
Brand: Shuster
Model #: 07018596
Product Specifications
Type | 2-Bolt Flange Bearing |
Inside Diameter (Decimal Inch) | 1.4375 |
Inside Diameter (Inch) | 1-7/16 |
Width (Decimal Inch) | 2.0150 |
Width (mm) | 51.30 |
Overall Length (mm) | 90.0000 |
Overall Length (Decimal Inch) | 3.54700 |
Overall Height (Decimal Inch) | 6.3430 |
Overall Height (mm) | 161.00000 |
Distance Between Mounting Hole Centers | 130.0000 |
Distance Between Mounting Hole Centers | 5.125 |
Material | Stanless Housing With Stainless Steel Bearing |
Distance Between Base And Center | 19.0000 |
Distance Between Base And Center | 0.7500 |
Lock Type | Eccentric |
