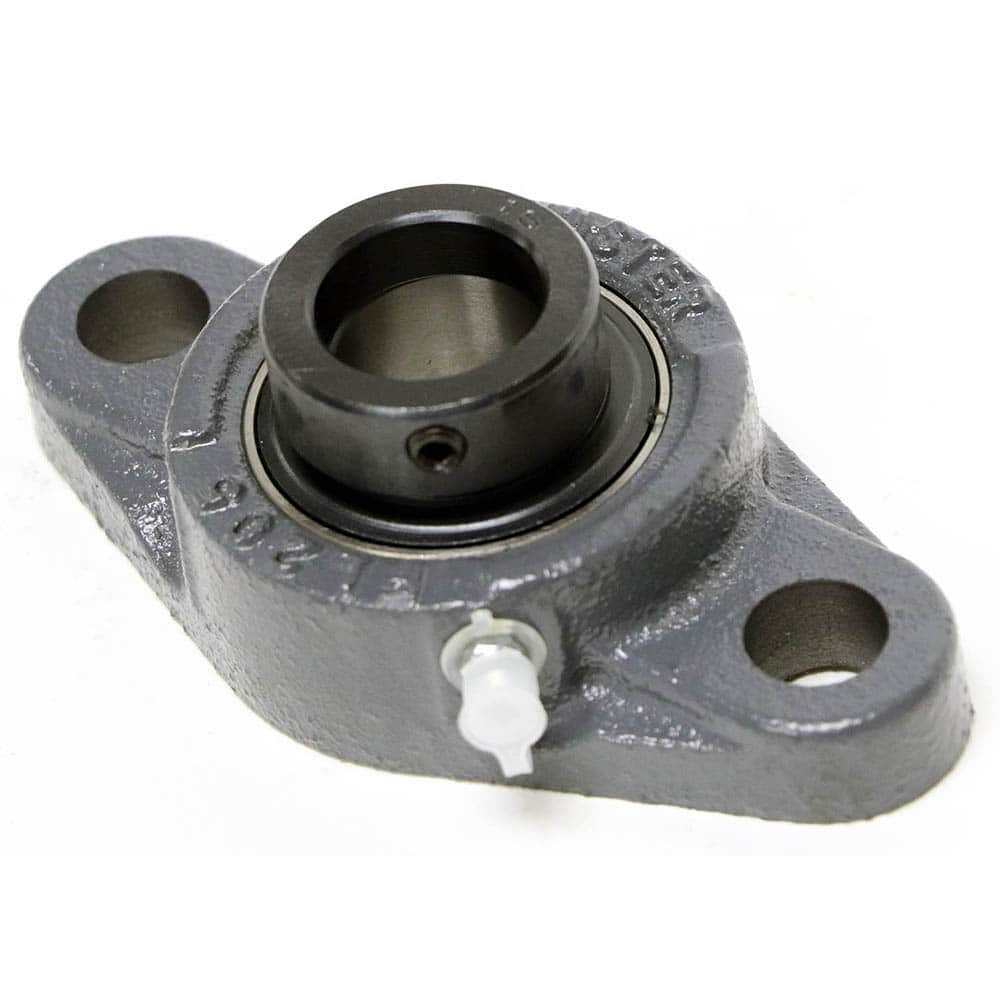

Shuster - NAFL206-19, 1-3/16" ID, 80mm OAL x 148mm OAH48.4mm Wide, 2-Bolt Flange Bearing
Item #: 18647438
Brand: Shuster
Model #: 06156518
Product Specifications
| Type | 2-Bolt Flange Bearing |
| Inside Diameter (Decimal Inch) | 1.1875 |
| Inside Diameter (Inch) | 1-3/16 |
| Width (Decimal Inch) | 1.9060 |
| Width (mm) | 48.40 |
| Overall Length (mm) | 80.0000 |
| Overall Length (Decimal Inch) | 3.15600 |
| Overall Height (Decimal Inch) | 5.8280 |
| Overall Height (mm) | 148.00000 |
| Distance Between Mounting Hole Centers | 117.0000 |
| Distance Between Mounting Hole Centers | 4.609 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 18.0000 |
| Distance Between Base And Center | 0.7080 |
| Lock Type | Eccentric |
