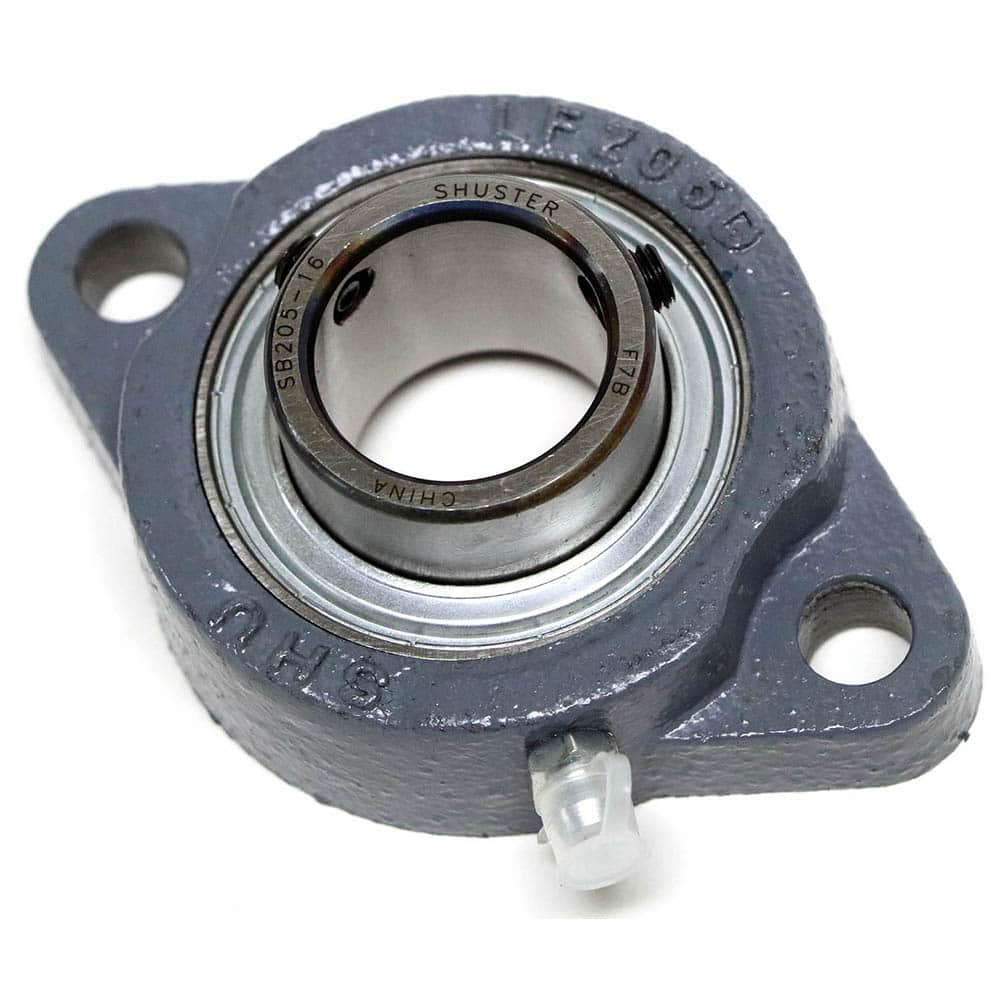

Shuster - SBLF202-10, 5/8" ID, 56mm OAL x 81mm OAH x 1" Wide, 2-Bolt Flange Bearing
Item #: 18647107
Brand: Shuster
Model #: 08766119
Product Specifications
| Type | 2-Bolt Flange Bearing |
| Inside Diameter (Decimal Inch) | 0.6250 |
| Inside Diameter (Inch) | 5/8 |
| Width (Inch) | 1 |
| Width (mm) | 25.50 |
| Overall Length (mm) | 56.0000 |
| Overall Length (Decimal Inch) | 2.20300 |
| Overall Height (Decimal Inch) | 3.1880 |
| Overall Height (mm) | 81.00000 |
| Distance Between Mounting Hole Centers | 63.5000 |
| Distance Between Mounting Hole Centers | 2.500 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 9.5000 |
| Distance Between Base And Center | 0.3750 |
| Lock Type | Set Screw |
