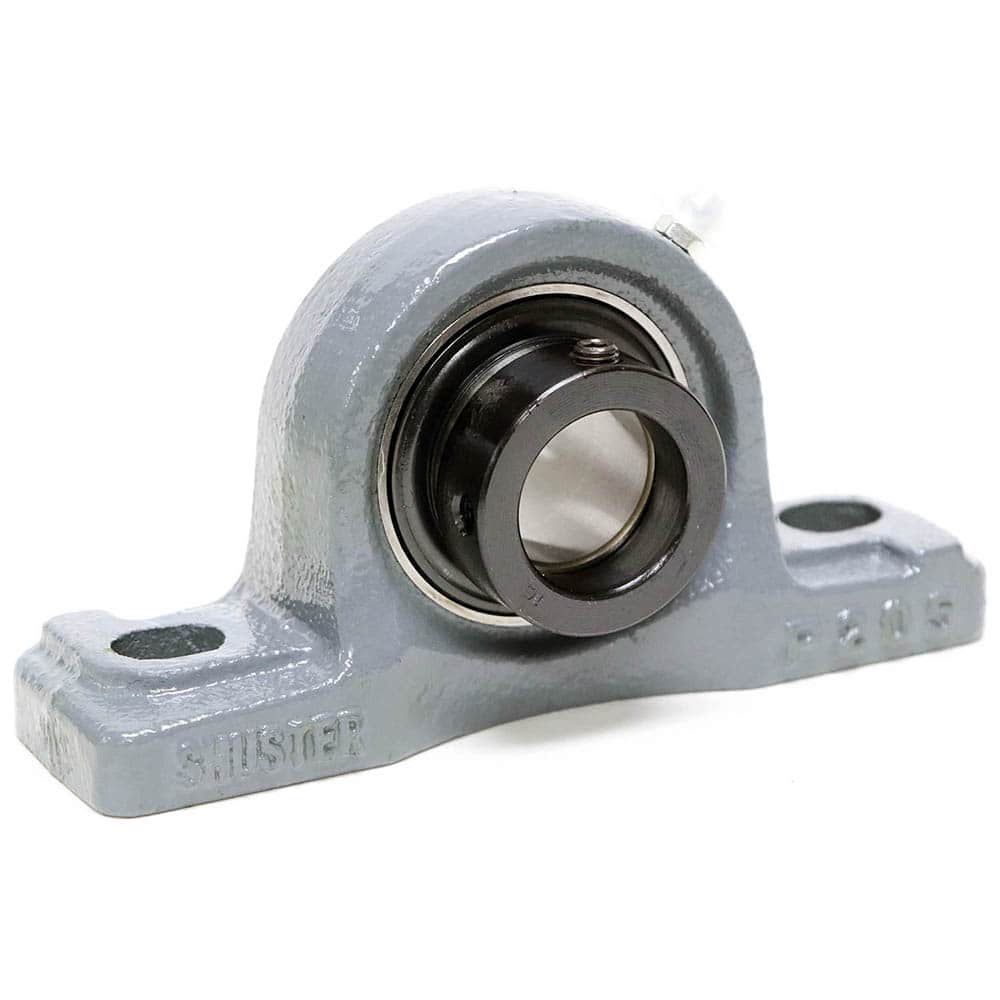

Shuster - NAP206-19, 1-3/16" ID, 6-1/2" OAL x 3-1/4" OAH, Ball Bearing Pillow Block
Item #: 18624536
Brand: Shuster
Model #: 06156495
Product Specifications
| Type | Ball Bearing Pillow Block |
| Inside Diameter (Decimal Inch) | 1.1875 |
| Inside Diameter (Inch) | 1-3/16 |
| Width (Decimal Inch) | 1.9060 |
| Width (mm) | 48.40 |
| Overall Length (Inch) | 6-1/2 |
| Overall Length (mm) | 165.0000 |
| Overall Height (Inch) | 3-1/4 |
| Overall Height (Decimal Inch) | 3.2500 |
| Overall Height (mm) | 83.00000 |
| Distance Between Mounting Hole Centers | 121.0000 |
| Distance Between Mounting Hole Centers | 4.750 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 42.9000 |
| Distance Between Base And Center | 1.6880 |
| Lock Type | Eccentric |
