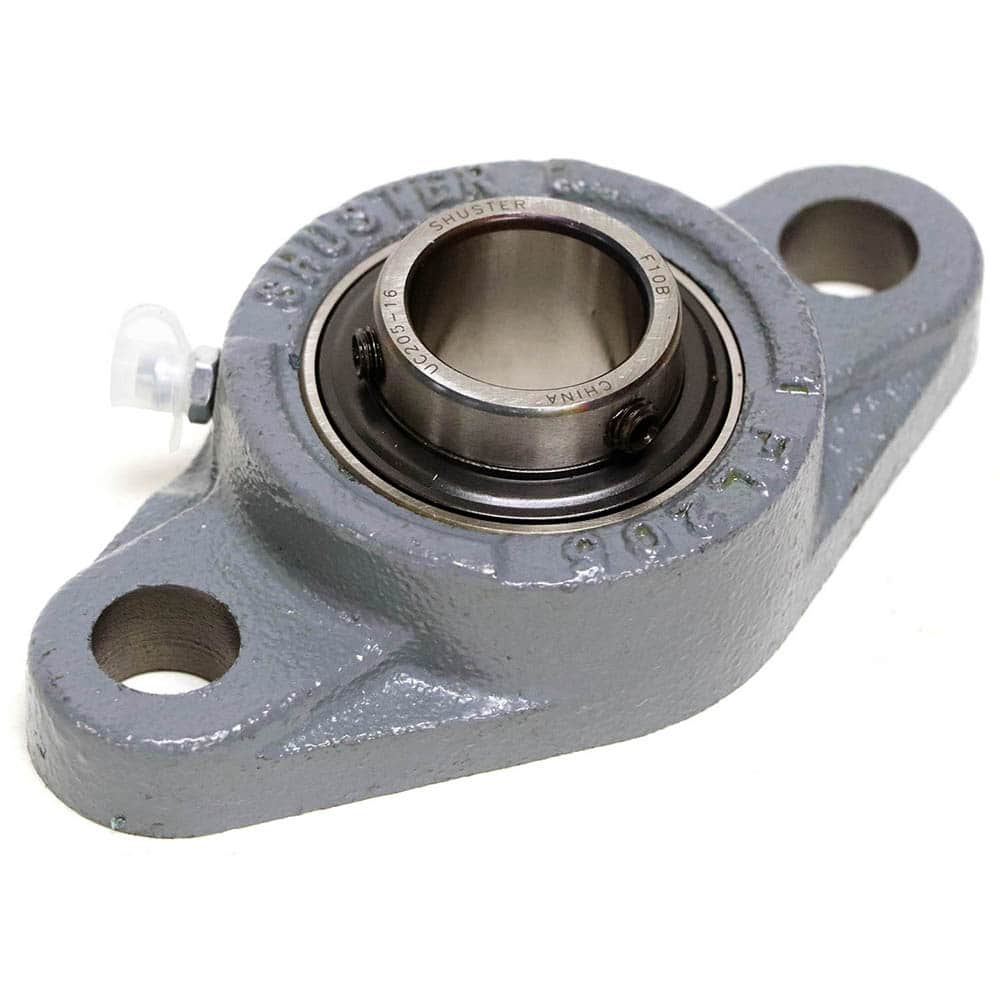

Shuster - UCFL205-16 (5/8 BLT HL), 1" ID, 68mm OAL x 5-1/8" OAH, 2-Bolt Flange Bearing
Item #: 18624247
Brand: Shuster
Model #: 05607057
Product Specifications
| Type | 2-Bolt Flange Bearing |
| Inside Diameter (Decimal Inch) | 1.0000 |
| Inside Diameter (Inch) | 1 |
| Width (Decimal Inch) | 1.4060 |
| Width (mm) | 35.70 |
| Overall Length (mm) | 68.0000 |
| Overall Length (Decimal Inch) | 2.68800 |
| Overall Height (Inch) | 5-1/8 |
| Overall Height (Decimal Inch) | 5.1250 |
| Overall Height (mm) | 130.00000 |
| Distance Between Mounting Hole Centers | 99.0000 |
| Distance Between Mounting Hole Centers | 3.906 |
| Material | Cast Iron Housing with Steel Bearing |
| Distance Between Base And Center | 16.0000 |
| Distance Between Base And Center | 0.6250 |
| Lock Type | Set Screw |
