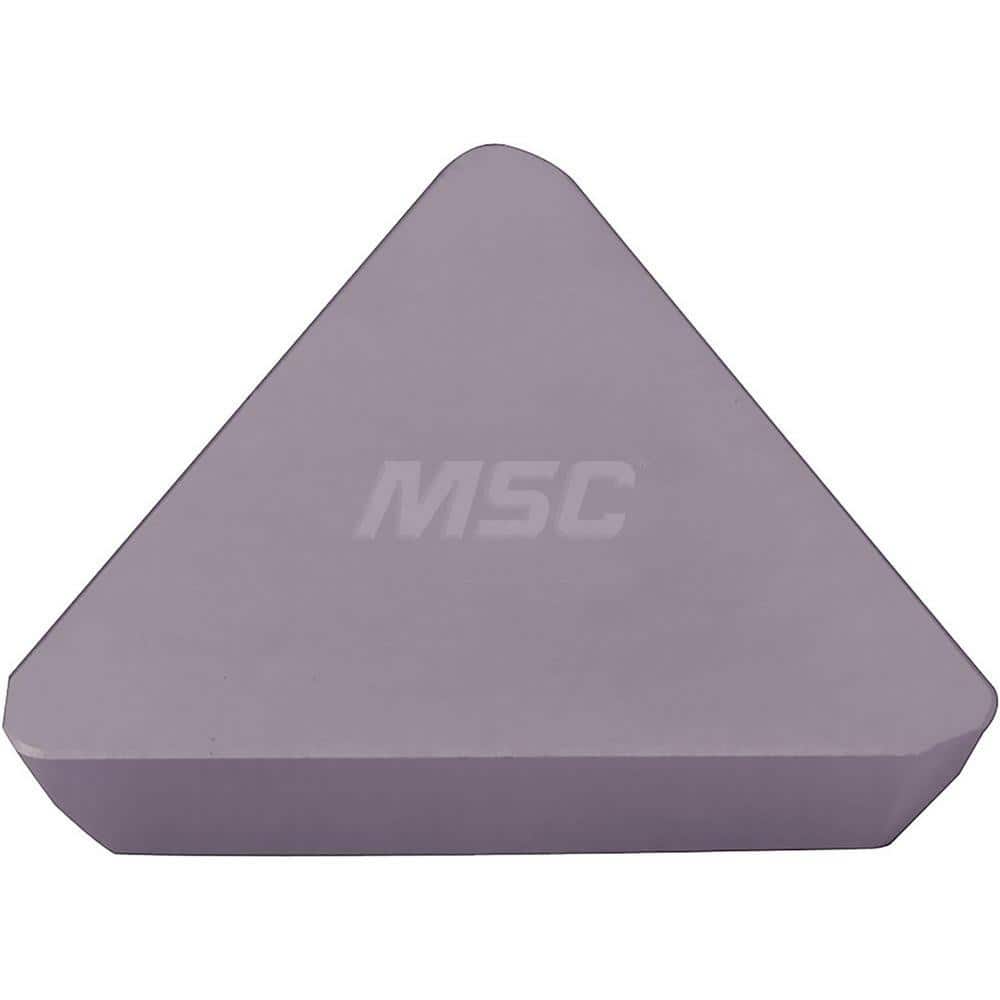

Kyocera TEKN 32PTTR PR1225 Grade PVD Carbide, Triangle, Positive Rake Angle, Right-Hand Milling Insert for Roughing in (P) Free-Cutting Steel, (P) Carbon/Alloy Steel, (P) Mold Steel, (M) Stainless Steel
Item #: 18486803
Brand: Kyocera
Model #: TKB05823
Product Specifications
| Insert Style | TEKN |
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | PR1225 |
| Length (Inch) | 3/8 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Right Hand |
| Coating Process | PVD |
| Maximum Depth of Cut (Decimal Inch) | 0.3750 |
| Rake | Positive |
| Ansi Code | TEKN32PTTRPR1225 |
| Iso Code | TEKN1603PTTR |
| Cutting Edge Style | Chamfered |
| Manufacturers Catalog Number | TEKN32PTTRPR1225 |
| Cutter Series Compatibility | MTES |
| Cutting Direction | Right Hand |
| Shape | Triangle |
| Insert Holding Method | Clamp |
| Coating/Finish | Megacoat |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
