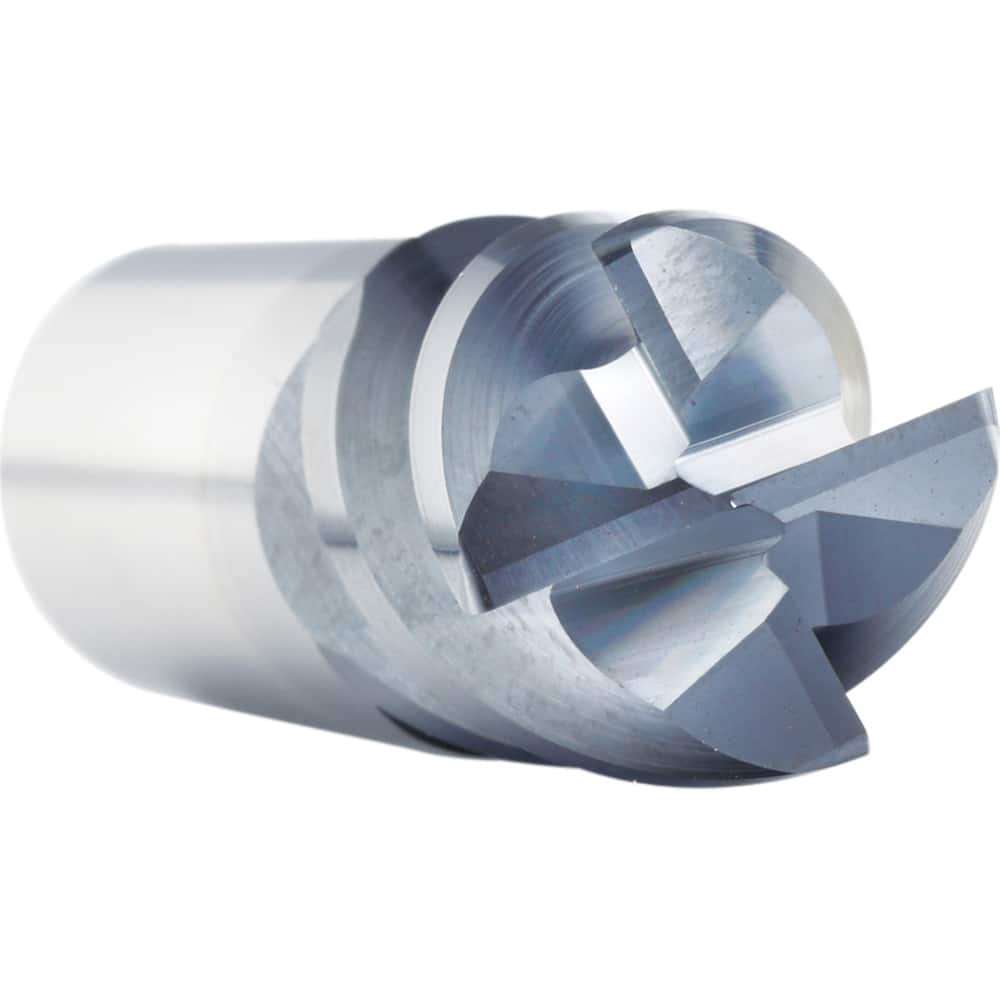

Square End Mill: 1'' Dia, 1-1/2'' LOC, 1'' Shank Dia, 4'' OAL, 4 Flutes, Solid Carbide Single End, AlTiN Finish, 45 ° Helix, Centercutting, RH Cut, Series XP-NB
Item #: 18402404
Brand: Supermill
Model #: XP1.0A
Product Specifications
| Mill Diameter (Inch) | 1 |
| Mill Diameter (Decimal Inch) | 1.0000 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/2 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 1 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 4 |
| Helix Angle | 45 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | No |
| Length Of Cut Range (Decimal Inch) | 1.5000 - 2.0000 |
| Length of Cut (Decimal Inch) | 1.5000 |
| Material Grade | Micrograin |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Flute Direction | Right Hand |
| Helix Style | Medium |
| Series | XP-NB |
