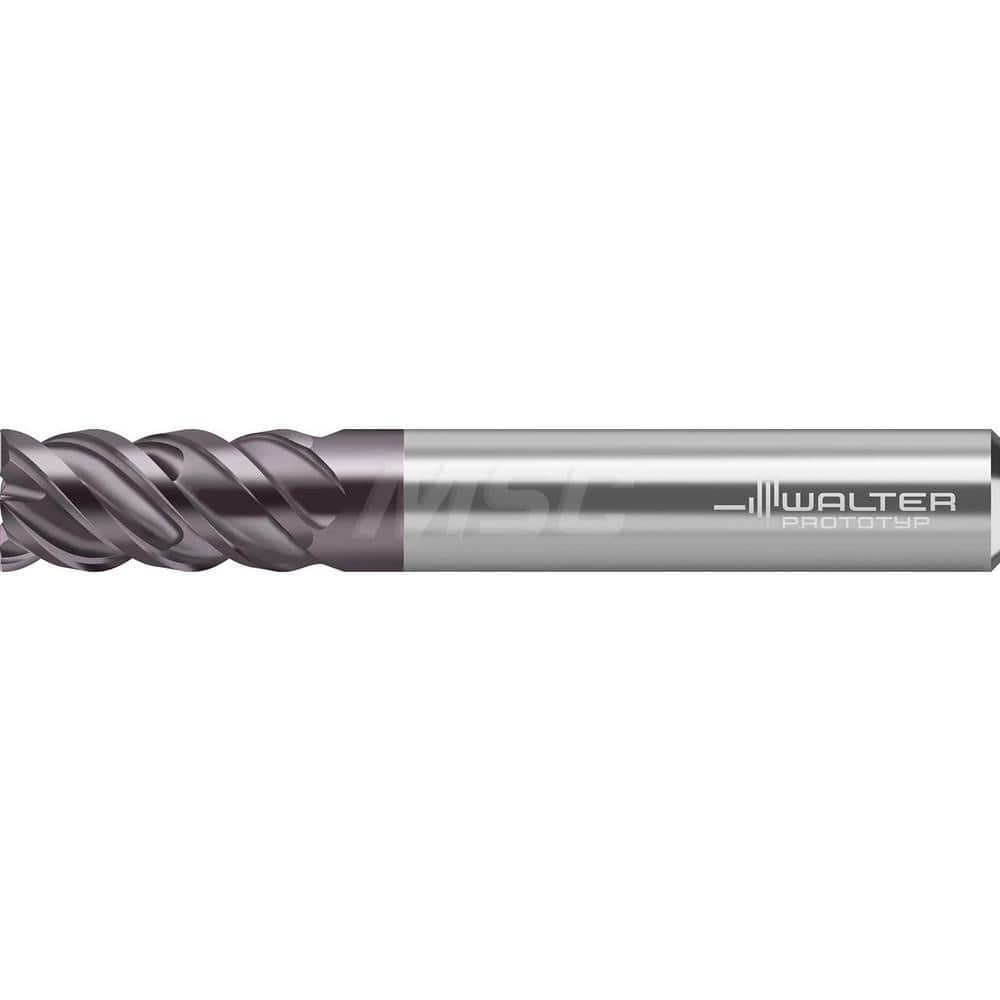

Square End Mill: 5/8'' Dia, 1-1/4'' LOC, 5/8'' Shank Dia, 3-1/2'' OAL, 4 Flutes, Solid Carbide Single End, 50 ° Helix, RH Cut, RH Flute
Item #: 18334466
Brand: Walter-Prototyp
Model #: 7810022
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 4 |
| Length of Cut (Inch) | 1-1/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Finish/Coating | TiAlN |
| Overall Length (Inch) | 3-1/2 |
| Helix Angle | 50 |
| Variable Helix | No |
| Variable Index | No |
| Extended Reach | No |
| Length of Cut (Decimal Inch) | 1.2500 |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 3.5000 |
| Flute Direction | Right Hand |
