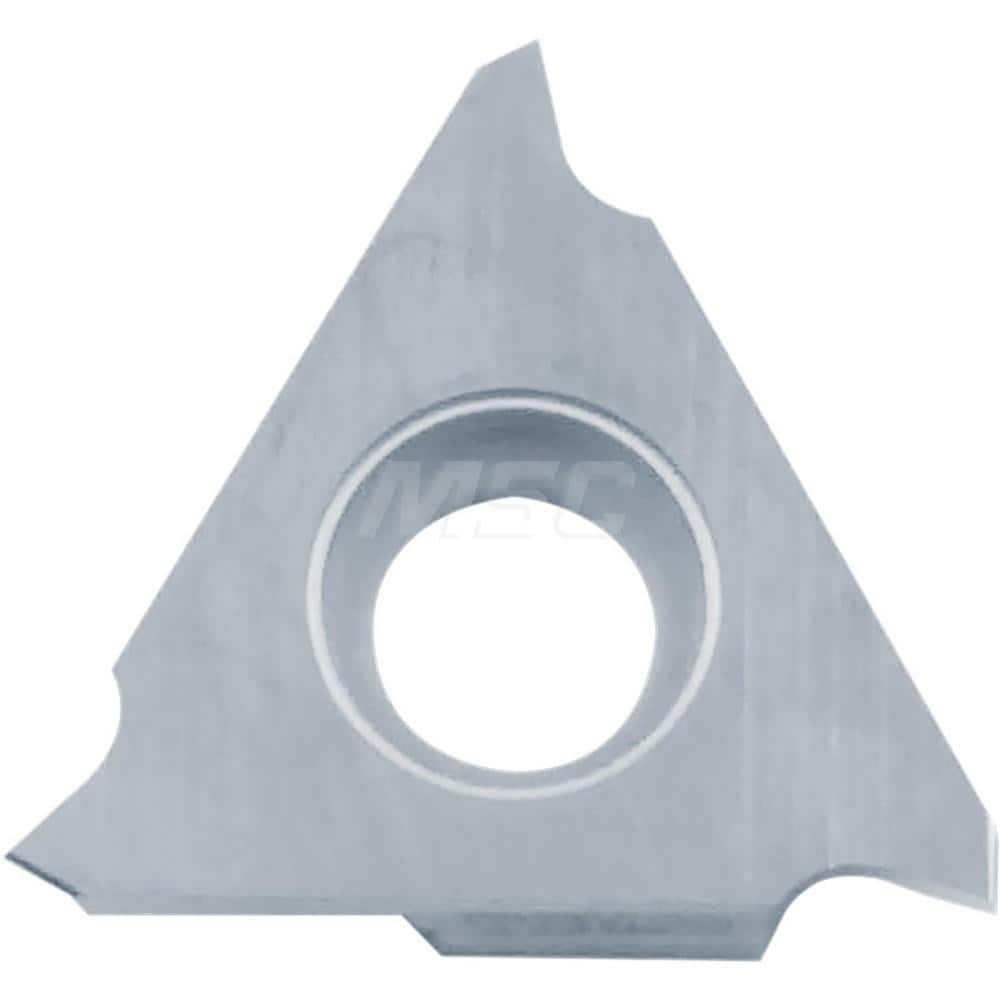

Grooving Insert: GBA43F TN620, Cermet TiCN Finish, Right Hand, 1.5 mm Cutting Width, 3.5 mm Max Depth, Series GBA
Item #: 18313924
Brand: Kyocera
Model #: TSR17829
Product Specifications
| Insert Style | GBA |
| Insert Size | 43 |
| Insert Material | Cermet |
| Manufacturer Grade | TN620 |
| Cutting Width (mm) | 1.50 |
| Maximum Depth of Cut (mm) | 3.50 |
| Insert Holding Method | Screw; Clamp |
| Cutting Height (Inch) | 1/2 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.20 |
| Maximum Depth Of Cut Range (mm) | 3.00 to 4.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Grooving |
| Series | GBA |
| Rake Angle | 10.00 |
| Iso Code | GBA43R150-020F |
| Manufacturers Catalog Number | GBA43R150020FTN620 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | F |
| Full Radius | No |
| Overall Width | 4.76 |
| Coating/Finish | TiCN |
| Number Of Cutting Edges | 3 |
| Hole Diameter (Mm) ( - 0 Decimals) | 5.50 |
