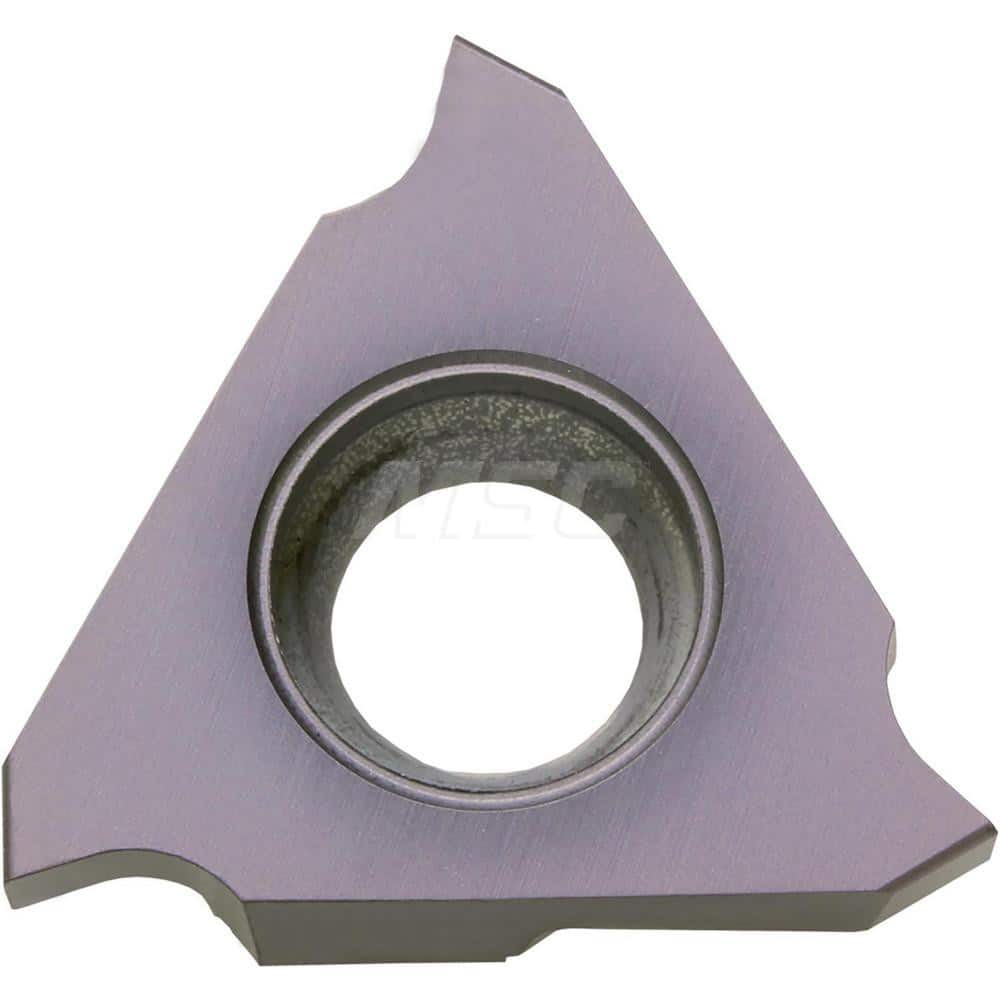

Grooving Insert: GBA32 PR1215, Solid Carbide Megacoat, Left Hand, 0.75 mm Cutting Width, 2 mm Max Depth, Series GBA
Item #: 18312330
Brand: Kyocera
Model #: TKH17107
Product Specifications
| Insert Style | GBA |
| Insert Size | 32 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1215 |
| Cutting Width (mm) | 0.75 |
| Maximum Depth of Cut (mm) | 2.00 |
| Insert Holding Method | Screw; Clamp |
| Cutting Height (Inch) | 1/8 |
| Insert Hand | Left Hand |
| Corner Radius (mm) | 0.05 |
| Maximum Depth Of Cut Range (mm) | 2.00 to 3.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Grooving |
| Series | GBA |
| Coating Process | PVD |
| Rake Angle | 10.00 |
| Iso Code | GBA32L075-005 |
| Manufacturers Catalog Number | GBA32L075005PR1215 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Full Radius | No |
| Overall Width | 3.18 |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 3 |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.40 |
