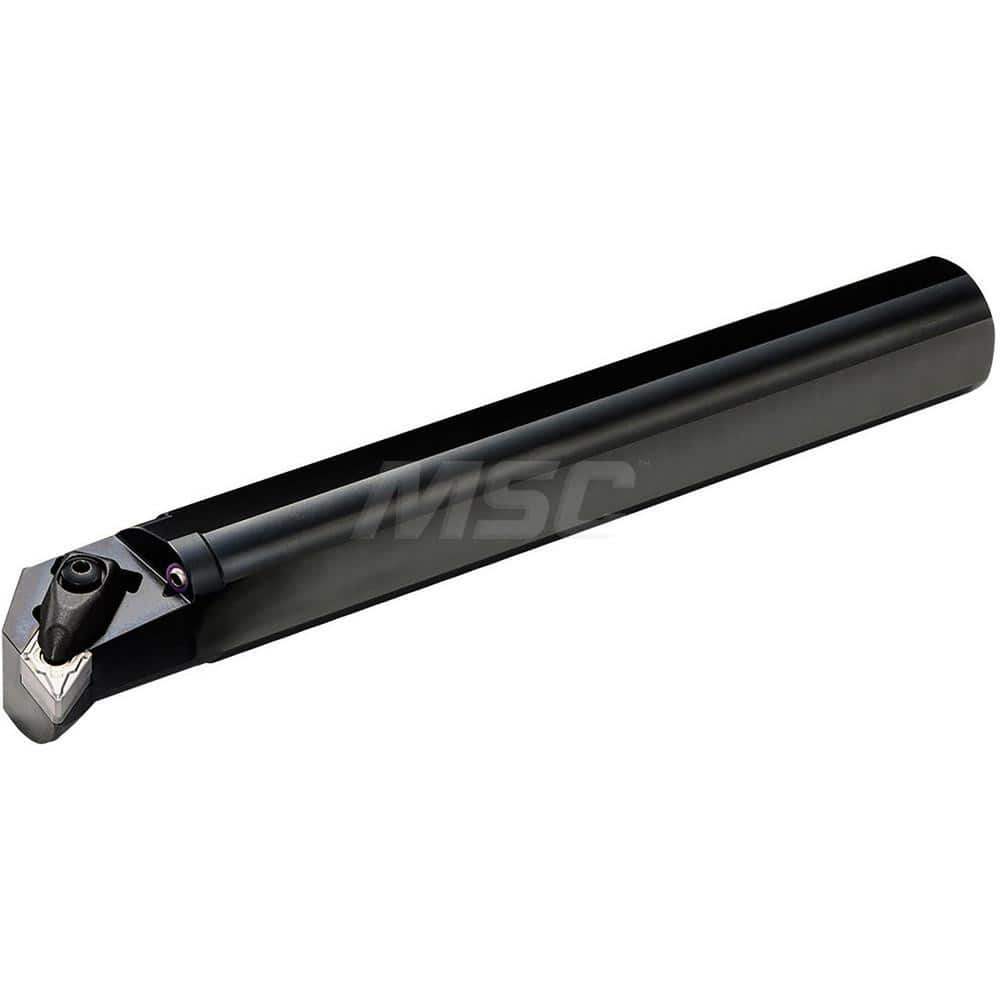

Indexable Boring Bar: A40TDDUNR1550, 50.00 mm Min Bore, 40.00 mm Shank Dia, N/A Steel Double Clamp, Uses DNMG43 ™, DNMX43 ™, DNGG43 ™, DNGA43 ™ & DNMM43 ™ Inserts
Item #: 18299578
Brand: Kyocera
Model #: THC16110
Product Specifications
| Minimum Bore Diameter (mm) | 50.00 |
| Maximum Bore Depth (mm) | 120.00 |
| Toolholder Style | A...DDUN |
| Tool Material | Steel |
| Insert Compatibility | DNMX43?; DNGG43?; DNGA43?; DNMG43?; DNMM43? |
| Shank Diameter (mm) | 40.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 300.00 |
| Insert Holding Method | Double Clamp |
| Series | DBCB |
| Multi-use Tool | Yes |
| Center to Cutting Edge (mm) | 27.00 |
| Multi-Use Application | Copying; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Manufacturers Catalog Number | A40TDDUNR1550 |
| Manufacturer's Part Number | A40TDDUNR1550 |
| Coolant Through | Yes |
