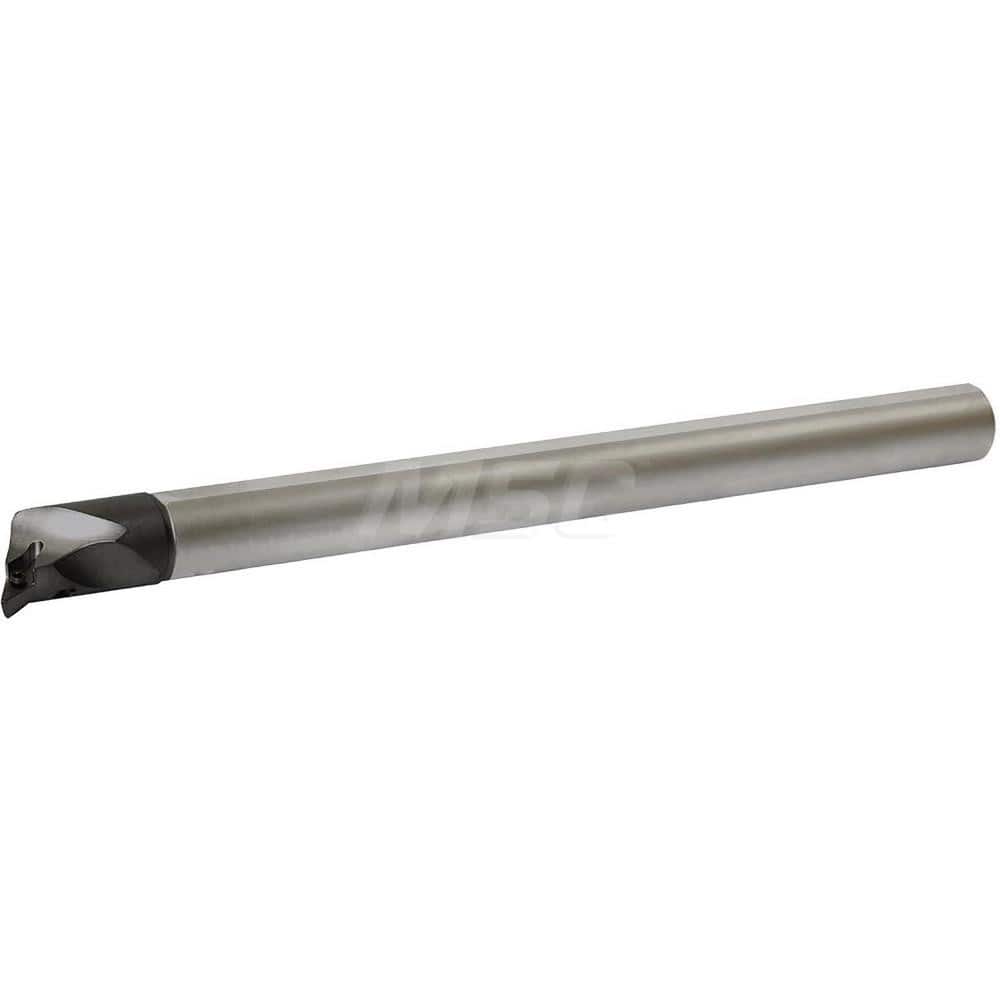

Indexable Boring Bar: E12QSVPBR1118A, 18.00 mm Min Bore, 12.00 mm Shank Dia, N/A Steel & Solid Carbide Screw, Uses VBMT22 ™, VBGT22 ™, VBET22 ™ & VBGW22 ™ Inserts
Item #: 18299156
Brand: Kyocera
Model #: THC14202
Product Specifications
| Minimum Bore Diameter (mm) | 18.00 |
| Maximum Bore Depth (mm) | 84.00 |
| Toolholder Style | E...SVPB |
| Tool Material | Steel; Solid Carbide |
| Insert Compatibility | VBET22?; VBGW22?; VBMT22?; VBGT22? |
| Shank Diameter (mm) | 12.00 |
| Hand of Holder | Right Hand |
| Overall Length (mm) | 180.00 |
| Insert Holding Method | Screw |
| Series | DYNB |
| Multi-use Tool | Yes |
| Center to Cutting Edge (mm) | 11.00 |
| Multi-Use Application | Copying; Undercutting |
| Number of Inserts Used on Toolholder | 1 |
| Coolant Hole Diameter (mm) | 4.00 |
| Manufacturers Catalog Number | E12QSVPBR1118A |
| Manufacturer's Part Number | E12QSVPBR1118A |
| Coolant Through | Yes |
