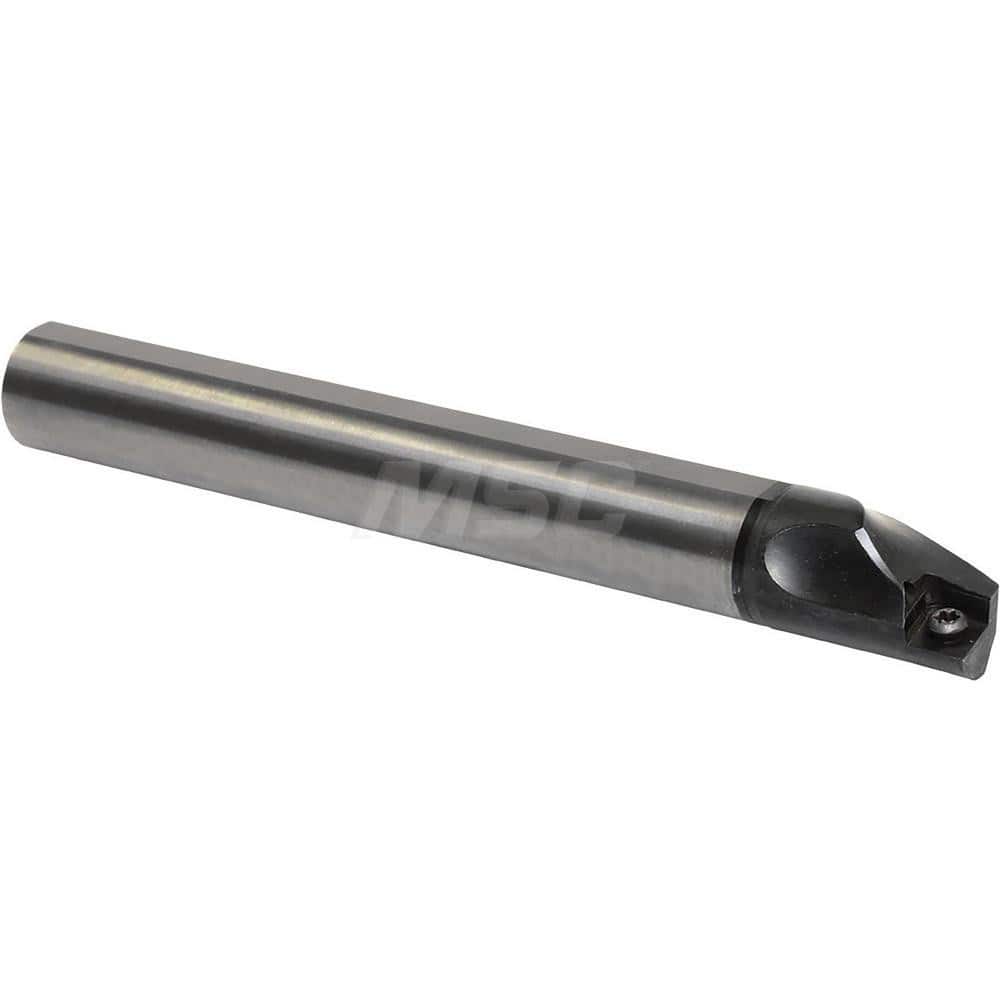

Indexable Boring Bar: E10NSCLCL0612AN, 12.00 mm Min Bore, 10.00 mm Shank Dia, N/A Steel & Solid Carbide Screw, Uses CCGT215 ™, CCMT215 ™, CCET215 ™, CCGW215 ™ & CCMW215 ™ Inserts
Item #: 18298968
Brand: Kyocera
Model #: THC14575
Product Specifications
| Minimum Bore Diameter (mm) | 12.00 |
| Maximum Bore Depth (mm) | 70.00 |
| Toolholder Style | E...SCLCN |
| Tool Material | Steel; Solid Carbide |
| Insert Compatibility | CCGT215?; CCGW215?; CCET215?; CCMT215?; CCMW215? |
| Shank Diameter (mm) | 10.00 |
| Hand of Holder | Left Hand |
| Overall Length (mm) | 160.00 |
| Insert Holding Method | Screw |
| Series | DYNB |
| Multi-use Tool | Yes |
| Center to Cutting Edge (mm) | 6.00 |
| Multi-Use Application | Internal Facing; Boring |
| Number of Inserts Used on Toolholder | 1 |
| Coolant Hole Diameter (mm) | 3.00 |
| Manufacturers Catalog Number | E10NSCLCL0612AN |
| Manufacturer's Part Number | E10NSCLCL0612AN |
| Coolant Through | Yes |
