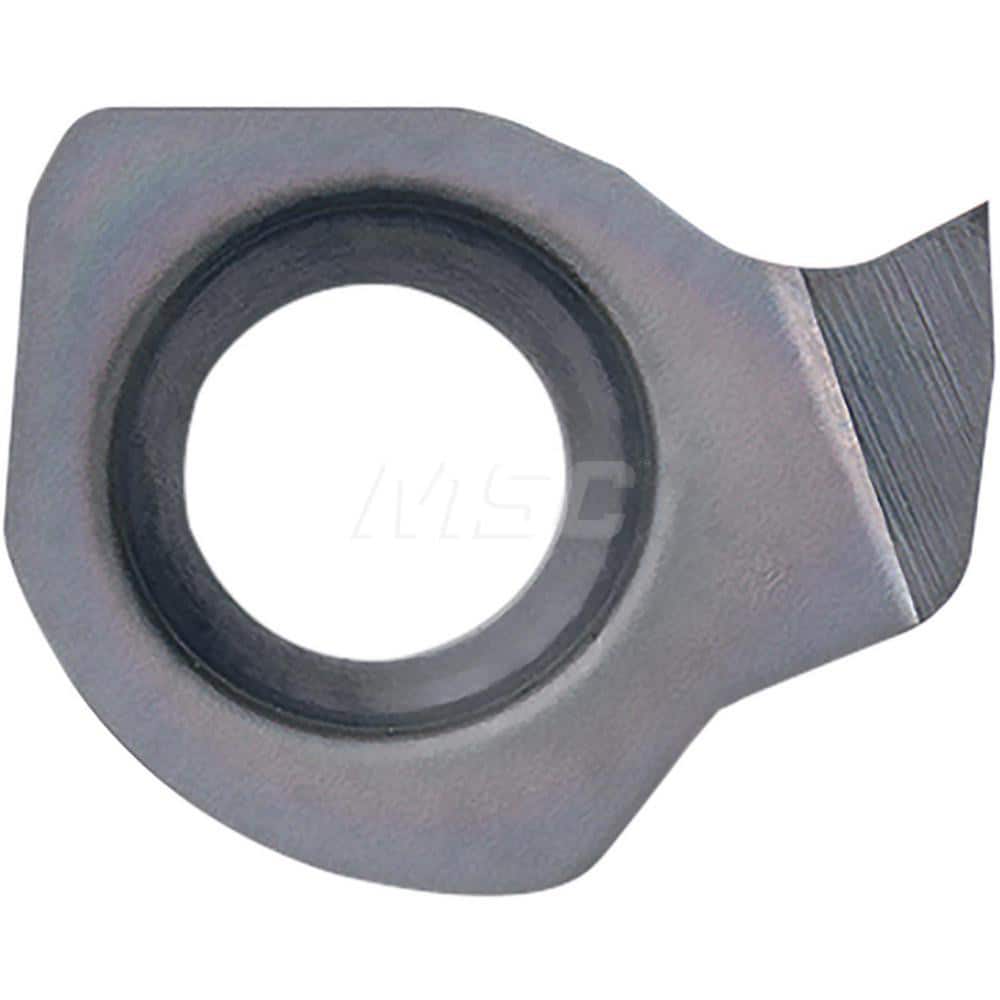

Grooving Insert: GC08 PR1535, Solid Carbide Megacoat Nano Finish, Right Hand, 1.2 mm Cutting Width, 1.5 mm Max Depth, Series SIGC
Item #: 18296962
Brand: Kyocera
Model #: TLC19946
Product Specifications
| Insert Style | GC |
| Insert Size | 08 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1535 |
| Cutting Width (mm) | 1.20 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Holding Method | Screw; Clamp |
| Cutting Height (mm) | 3.50 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.05 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Internal Grooving; Small Parts Machining |
| Series | SIGC |
| Coating Process | PVD |
| Iso Code | GC08R120-005 |
| Manufacturers Catalog Number | GC08R120005PR1535 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Full Radius | No |
| Overall Width | 3.40 |
| Coating/Finish | Megacoat Nano |
| Number Of Cutting Edges | 1 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.70 |
