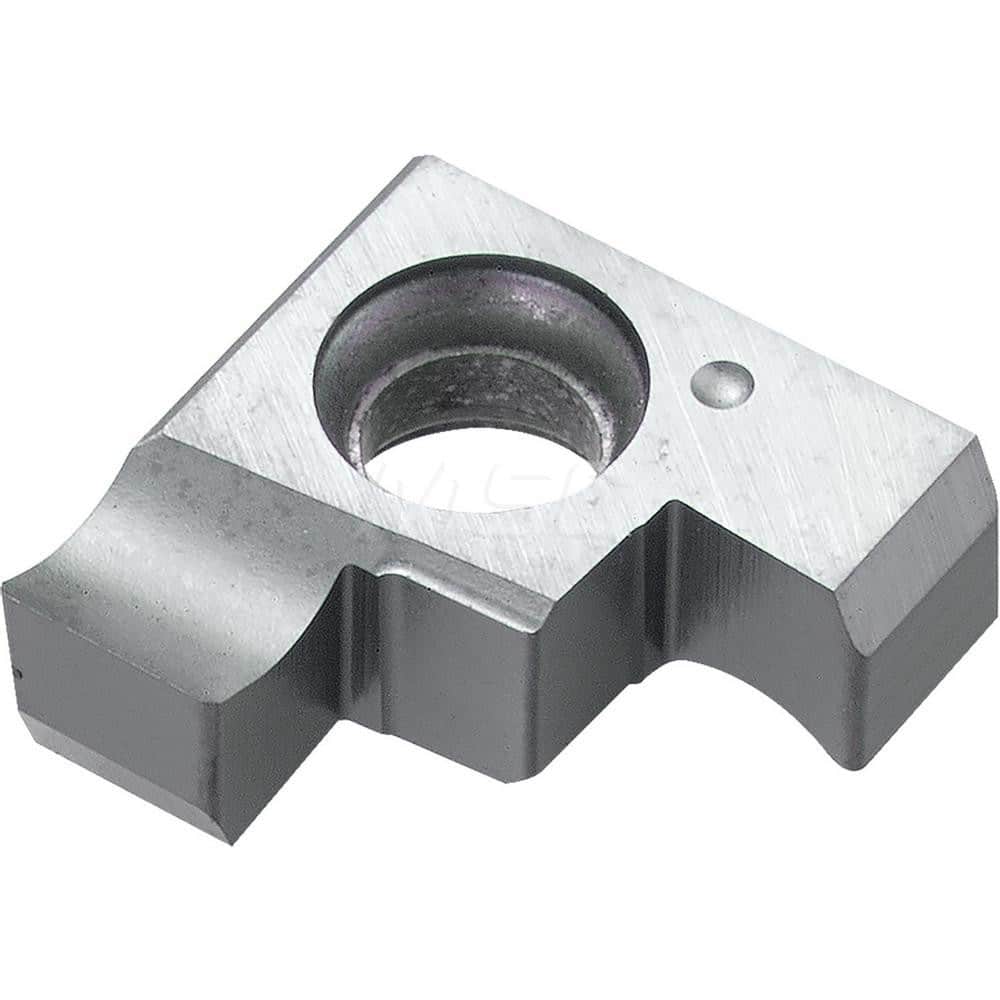

Grooving Insert: GE200010A KW10, Solid Carbide Co & WC Finish, Right Hand, 2 mm Cutting Width, 1.5 mm Max Depth, Series SIGE
Item #: 18294405
Brand: Kyocera
Model #: TWE16760
Product Specifications
| Insert Style | GE |
| Insert Size | 200010 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KW10 |
| Cutting Width (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 1.50 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 2.58 |
| Insert Hand | Right Hand |
| Corner Radius (mm) | 0.10 |
| Maximum Depth Of Cut Range (mm) | 0.00 to 2.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Internal Grooving |
| Series | Sige |
| Rake Angle | 5.00 |
| Iso Code | GER200-010A |
| Manufacturers Catalog Number | GER200010AKW10 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | A |
| Full Radius | No |
| Overall Width | 2.00 |
| Coating/Finish | Co; WC |
| Number Of Cutting Edges | 2 |
| Hole Diameter (Mm) ( - 0 Decimals) | 2.50 |
