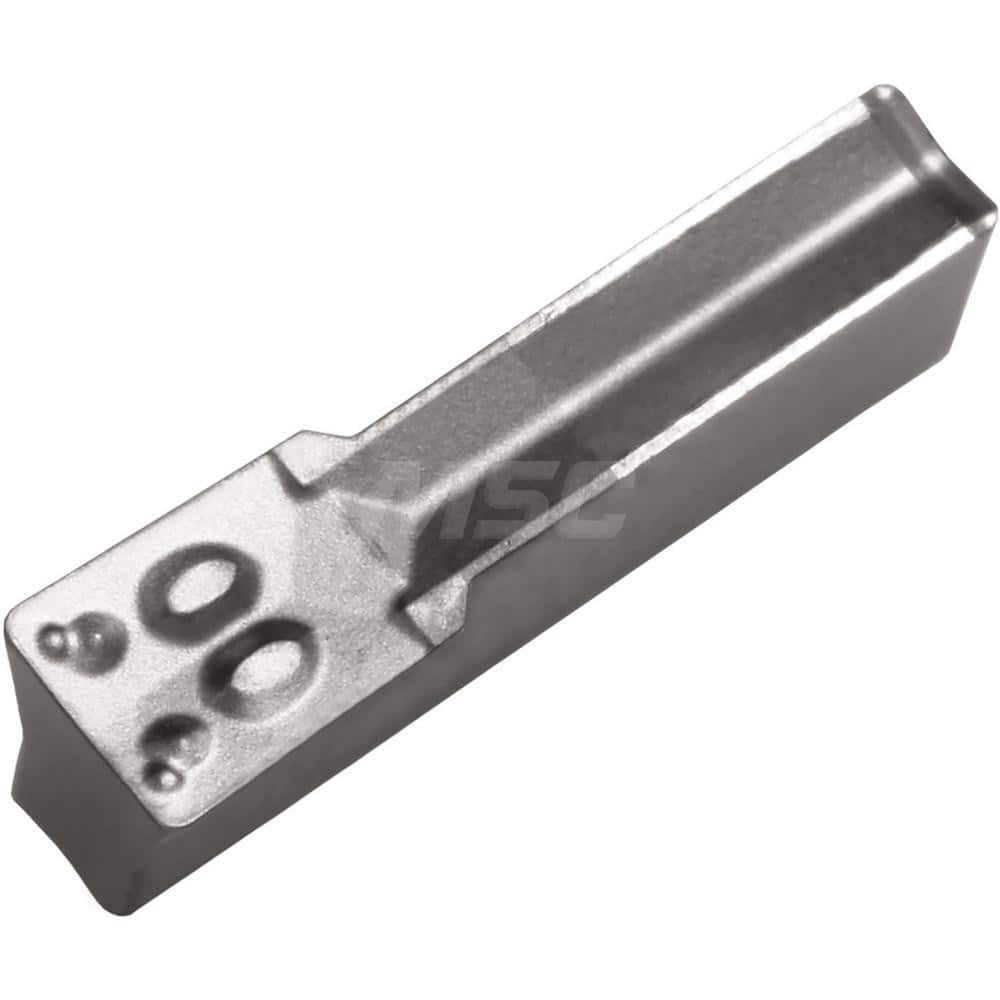

Grooving Insert: FMM4004 KW10, Solid Carbide Co & WC Finish, Neutral, 4 mm Cutting Width, 25 mm Max Depth, Series KFMS
Item #: 18294215
Brand: Kyocera
Model #: TWE10220
Product Specifications
| Insert Style | FMM |
| Insert Size | 4004 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KW10 |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 3.50 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Face Grooving |
| Series | KFMS |
| Iso Code | FMM40-04 |
| Manufacturers Catalog Number | FMM4004KW10 |
| Minimum Groove Width (mm) | -0.05 |
| Maximum Groove Width (mm) | 0.05 |
| Full Radius | No |
| Overall Width | 4.00 |
| Coating/Finish | Co; WC |
| Number Of Cutting Edges | 1 |
