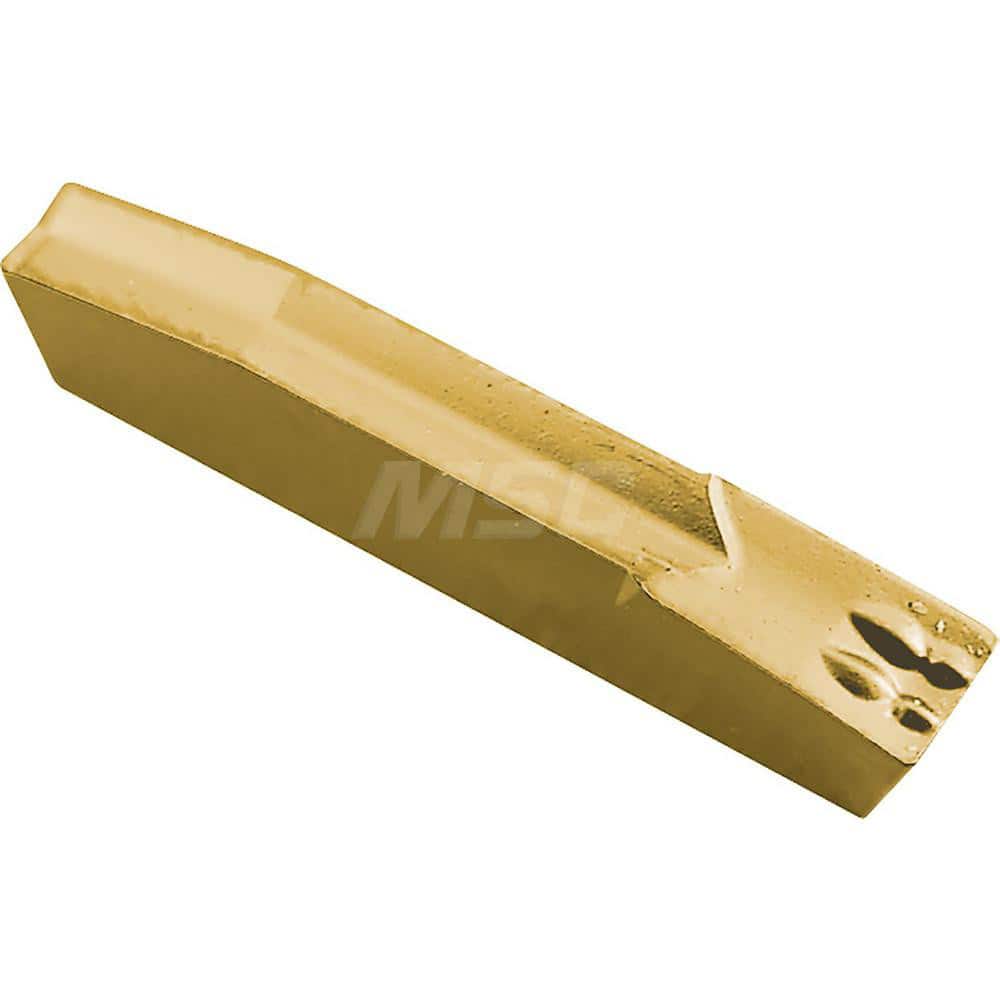

Grooving Insert: GM44D CR9025, Solid Carbide TiCN & TiN Finish, Left Hand, 4 mm Cutting Width, 25 mm Max Depth, Series KGM
Item #: 18294066
Brand: Kyocera
Model #: TKW12602
Product Specifications
| Insert Style | GM |
| Insert Size | 44 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | CR9025 |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Left Hand |
| Corner Radius (mm) | 0.25 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 4 |
| Rake | Positive |
| Cutting Tool Application | External Deep Grooving; Cut-Off; External Grooving |
| Series | KGM |
| Coating Process | CVD |
| Iso Code | GML4-4D |
| Manufacturers Catalog Number | GML44DCR9025 |
| Minimum Groove Width (mm) | -0.05 |
| Maximum Groove Width (mm) | 0.05 |
| Chip Breaker | D |
| Full Radius | No |
| Overall Width | 4.00 |
| Coating/Finish | TiCN; TiN |
| Number Of Cutting Edges | 1 |
