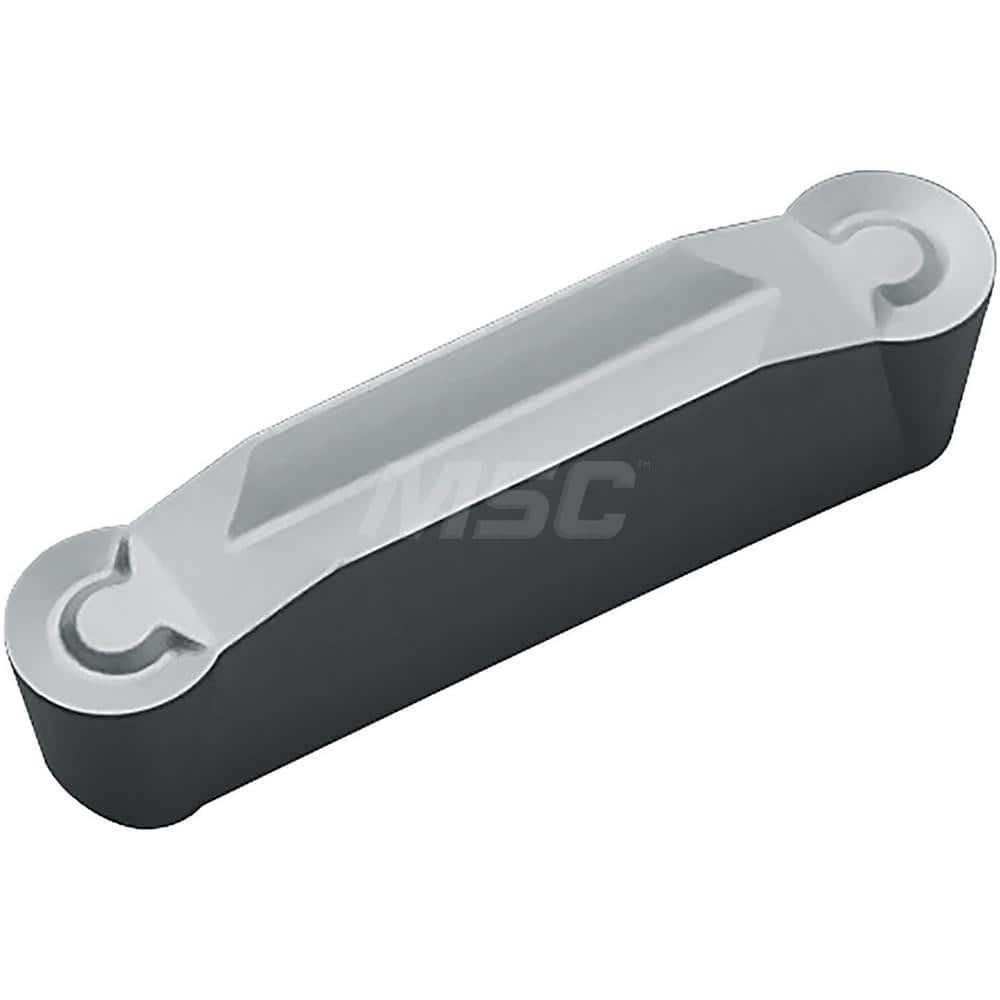

Grooving Insert: GMM6020300R TN90, Cermet Neutral, 6 mm Cutting Width, 30 mm Max Depth, Series KGM
Item #: 18293944
Brand: Kyocera
Model #: TSO13040
Product Specifications
| Insert Style | GMM |
| Insert Size | 6020300 |
| Insert Material | Cermet |
| Manufacturer Grade | TN90 |
| Cutting Width (mm) | 6.00 |
| Maximum Depth of Cut (mm) | 30.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 3.00 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Copying |
| Series | KGM |
| Iso Code | GMM6020-300R |
| Manufacturers Catalog Number | GMM6020300RTN90 |
| Minimum Groove Width (mm) | -0.05 |
| Maximum Groove Width (mm) | 0.05 |
| Chip Breaker | R |
| Full Radius | Yes |
| Overall Width | 6.00 |
| Number Of Cutting Edges | 2 |
