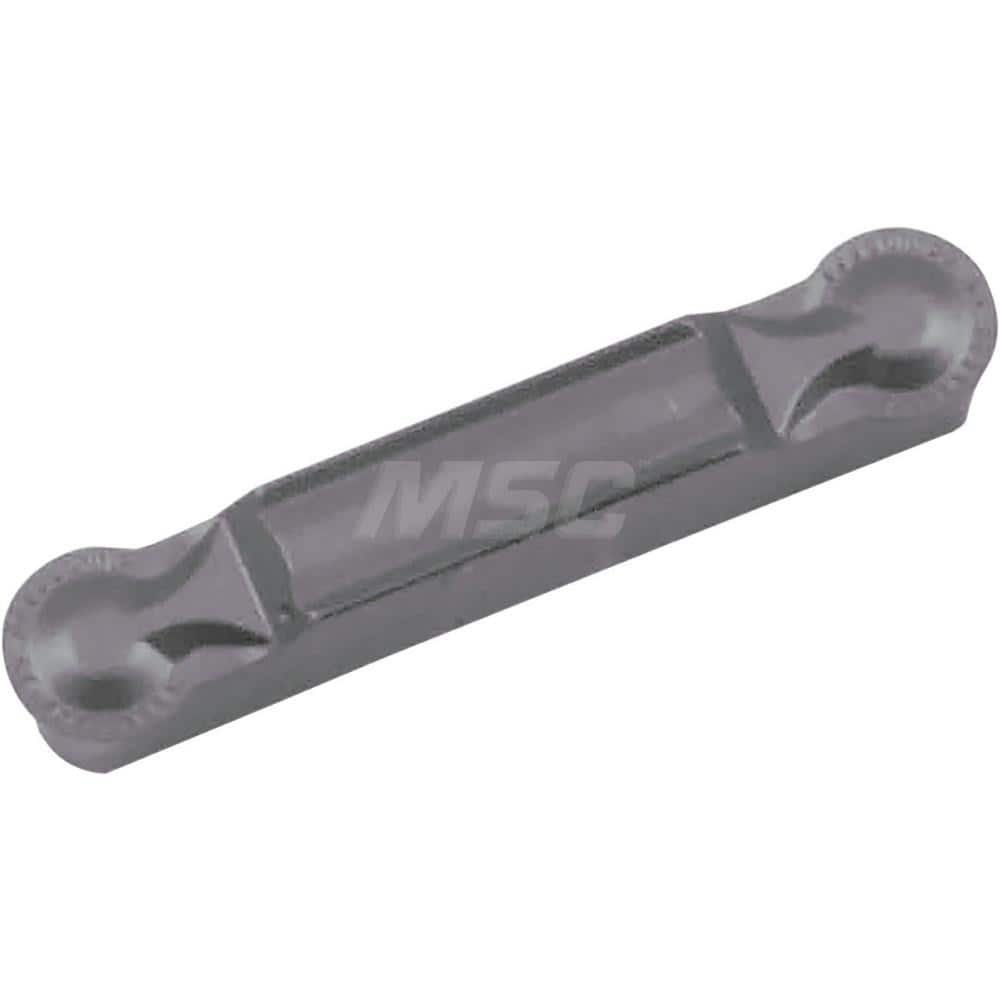

Grooving Insert: GDFM5020CM PR1215, Solid Carbide Megacoat, Neutral, 5 mm Cutting Width, 32 mm Max Depth, Series KGD
Item #: 18293480
Brand: Kyocera
Model #: TKH10814
Product Specifications
| Insert Style | GDFM |
| Insert Size | 5020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1215 |
| Cutting Width (mm) | 5.00 |
| Maximum Depth of Cut (mm) | 32.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.50 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 2.50 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Face Grooving |
| Series | KGD |
| Coating Process | PVD |
| Iso Code | GDFM5020N-250R-CM |
| Manufacturers Catalog Number | GDFM5020N250RCMPR1215 |
| Minimum Groove Width (mm) | -0.04 |
| Maximum Groove Width (mm) | 0.04 |
| Chip Breaker | CM |
| Full Radius | Yes |
| Overall Width | 5.00 |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 2 |
