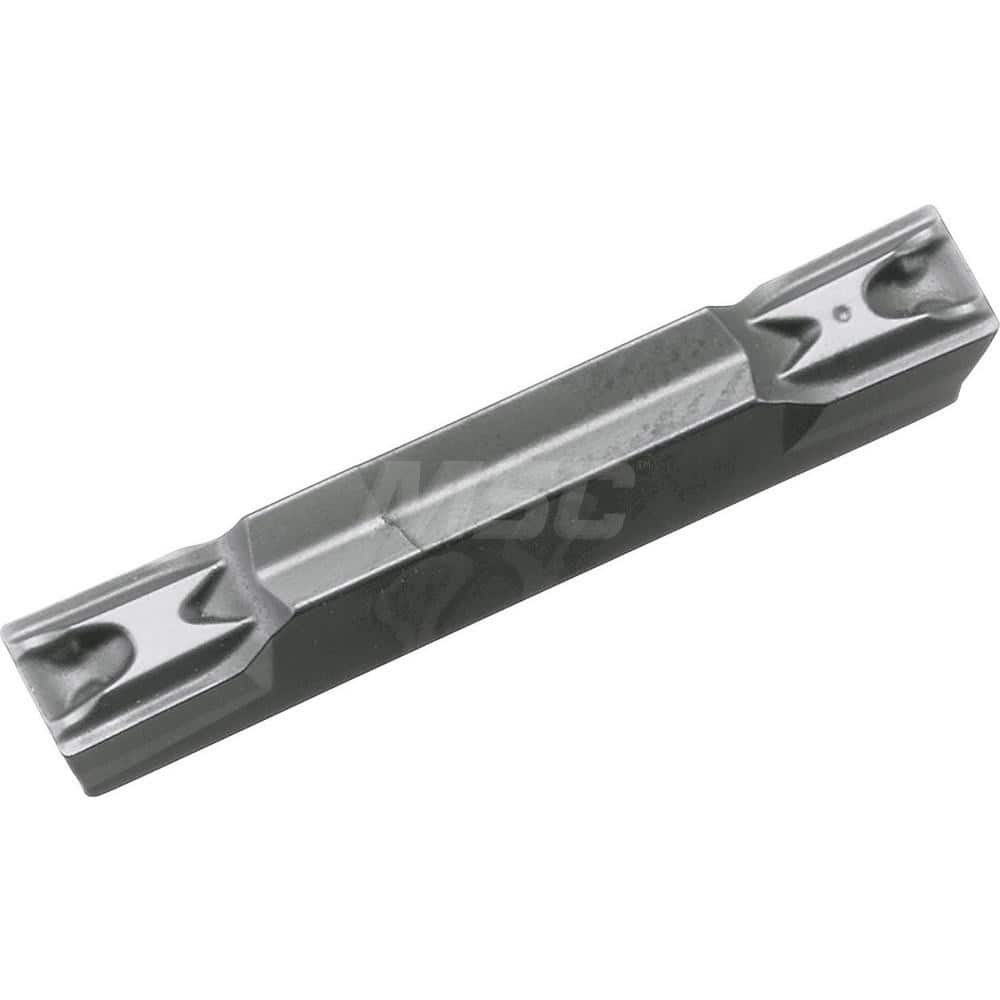

Grooving Insert: GDM3020GL TN620, Cermet TiCN Finish, Neutral, 3 mm Cutting Width, 25.5 mm Max Depth, Series KGD
Item #: 18293324
Brand: Kyocera
Model #: TSR10646
Product Specifications
| Insert Style | GDM |
| Insert Size | 3020 |
| Insert Material | Cermet |
| Manufacturer Grade | TN620 |
| Cutting Width (mm) | 3.00 |
| Maximum Depth of Cut (mm) | 25.50 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Traversing; External Grooving |
| Series | KGD |
| Iso Code | GDM3020N-040GL |
| Manufacturers Catalog Number | GDM3020N040GLTN620 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | GL |
| Full Radius | No |
| Overall Width | 3.00 |
| Coating/Finish | TiCN |
| Number Of Cutting Edges | 2 |
