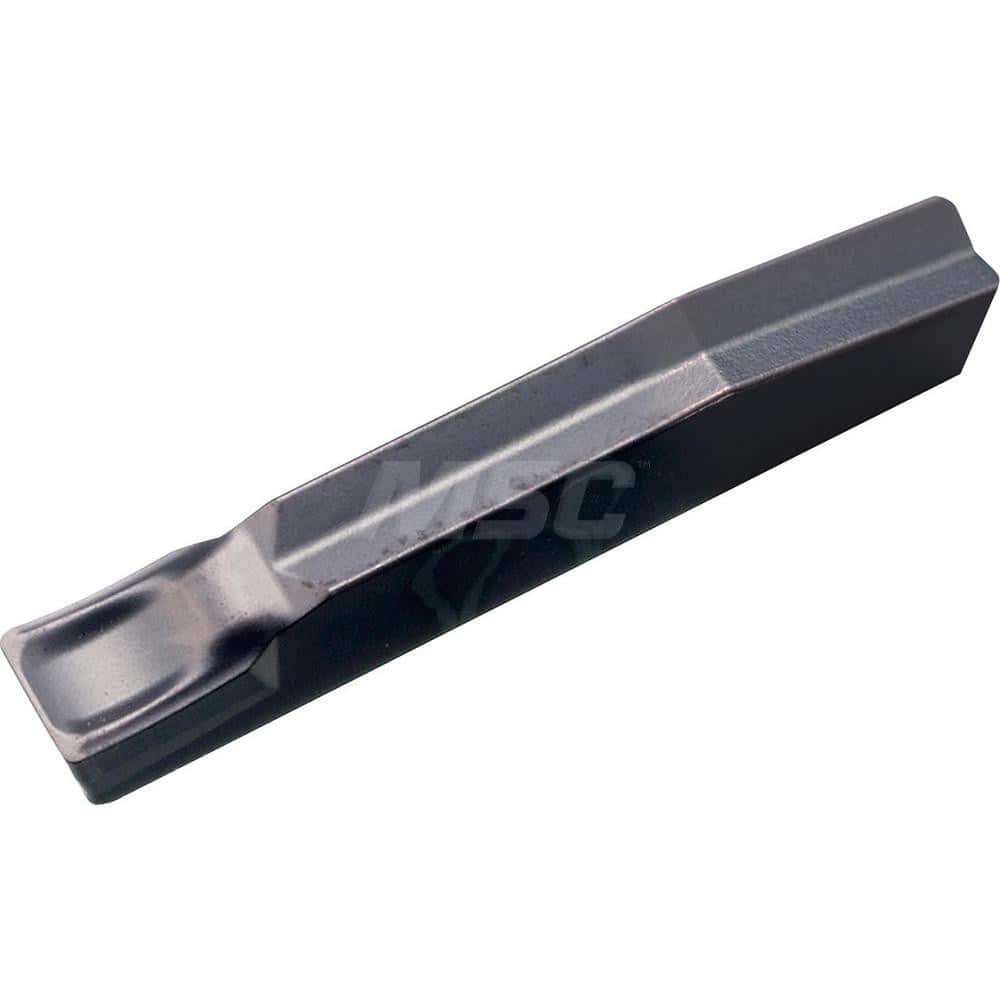

Grooving Insert: GDMS2020PH PR1535, Solid Carbide Megacoat Nano Finish, Neutral, 2 mm Cutting Width, 17 mm Max Depth, Series KGD
Item #: 18293316
Brand: Kyocera
Model #: TLC10696
Product Specifications
| Insert Style | GDMS |
| Insert Size | 2020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1535 |
| Cutting Width (mm) | 2.00 |
| Maximum Depth of Cut (mm) | 17.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.20 |
| Maximum Depth Of Cut Range (mm) | 10.00 to 20.00 |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Cut-Off; External Grooving |
| Series | KGD |
| Coating Process | PVD |
| Iso Code | GDMS2020N-020PH |
| Manufacturers Catalog Number | GDMS2020N020PHPR1535 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | PH |
| Full Radius | No |
| Overall Width | 2.00 |
| Coating/Finish | Megacoat Nano |
| Number Of Cutting Edges | 1 |
