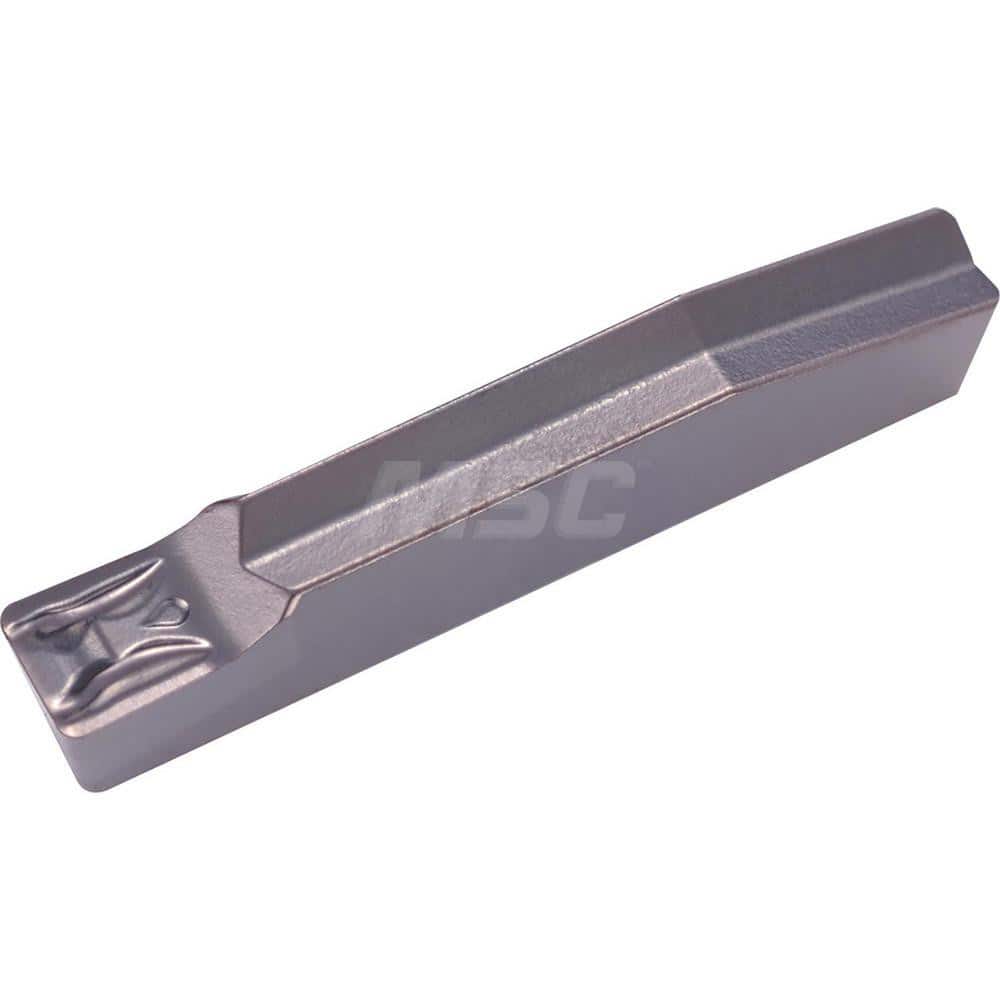

Grooving Insert: GDMS4020GM PR1225, Solid Carbide Megacoat, Neutral, 4 mm Cutting Width, 25.5 mm Max Depth, Series KGD
Item #: 18293175
Brand: Kyocera
Model #: TKE10616
Product Specifications
| Insert Style | GDMS |
| Insert Size | 4020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1225 |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 25.50 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Traversing; External Grooving |
| Series | KGD |
| Coating Process | PVD |
| Iso Code | GDMS4020N040GMPR1225 |
| Manufacturers Catalog Number | GDMS4020N040GMPR1225 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | GM |
| Full Radius | No |
| Overall Width | 4.00 |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 1 |
