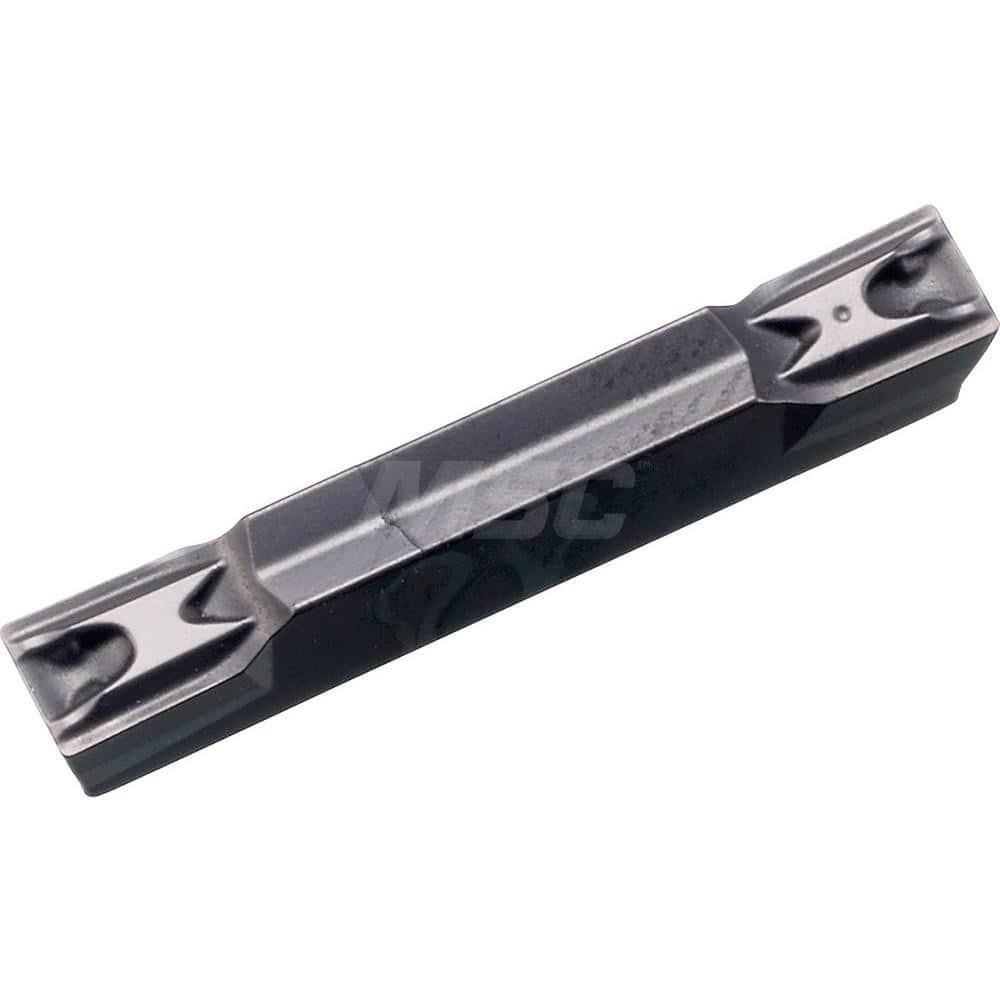

Grooving Insert: GDM6020GL PR1215, Solid Carbide Megacoat, Neutral, 6 mm Cutting Width, 30 mm Max Depth, Series KGD
Item #: 18293076
Brand: Kyocera
Model #: TKH10661
Product Specifications
| Insert Style | GDM |
| Insert Size | 6020 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1215 |
| Cutting Width (mm) | 6.00 |
| Maximum Depth of Cut (mm) | 30.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Traversing; External Grooving |
| Series | KGD |
| Coating Process | PVD |
| Iso Code | GDM6020N040GLPR1215 |
| Manufacturers Catalog Number | GDM6020N040GLPR1215 |
| Minimum Groove Width (mm) | -0.04 |
| Maximum Groove Width (mm) | 0.04 |
| Chip Breaker | GL |
| Full Radius | No |
| Overall Width | 6.00 |
| Coating/Finish | Megacoat |
| Number Of Cutting Edges | 2 |
