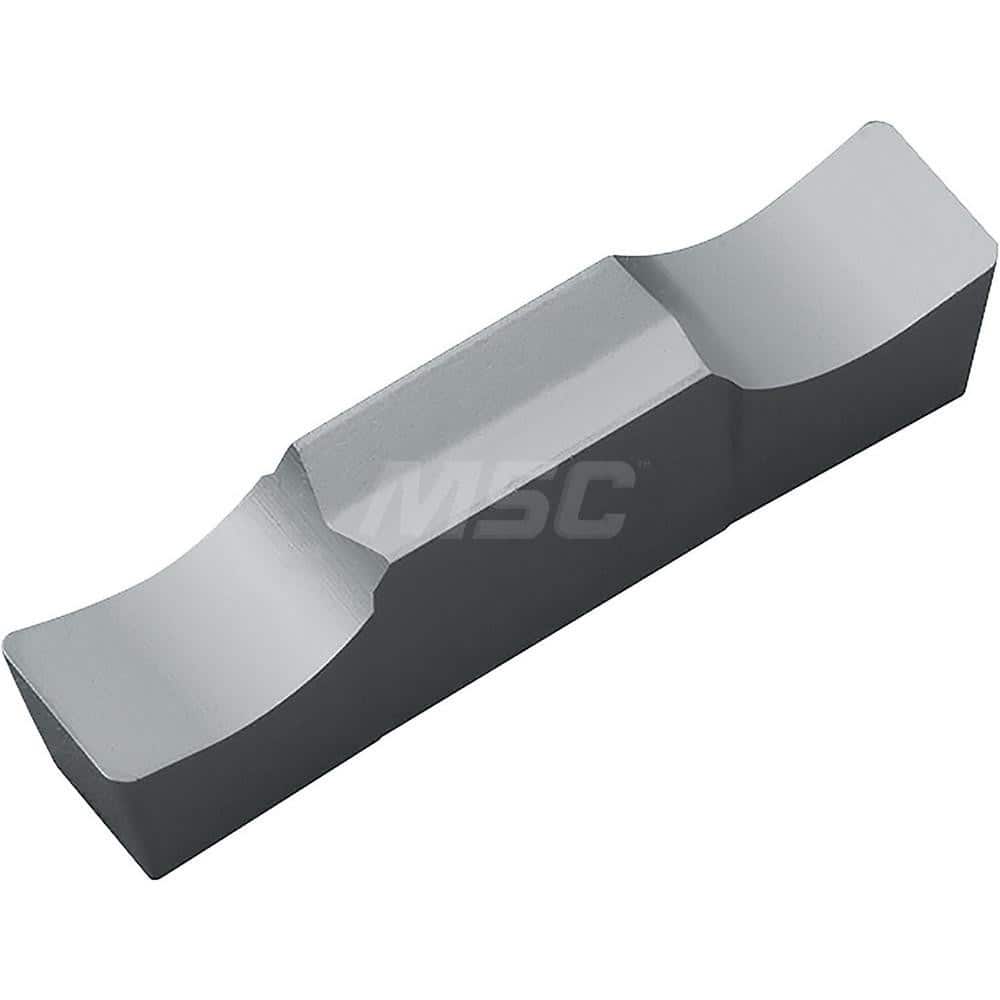

Grooving Insert: GMG8030050MG KW10, Solid Carbide Co & WC Finish, Neutral, 8 mm Cutting Width, 25 mm Max Depth, Series KGM
Item #: 18292920
Brand: Kyocera
Model #: TWE12433
Product Specifications
| Insert Style | GMG |
| Insert Size | 8030050 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KW10 |
| Cutting Width (mm) | 8.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 5.50 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.50 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | External Grooving |
| Series | KGM |
| Iso Code | GMG8030-050MG |
| Manufacturers Catalog Number | GMG8030050MGKW10 |
| Minimum Groove Width (mm) | -0.03 |
| Maximum Groove Width (mm) | 0.03 |
| Chip Breaker | MG |
| Full Radius | No |
| Overall Width | 8.00 |
| Coating/Finish | Co; WC |
| Number Of Cutting Edges | 2 |
