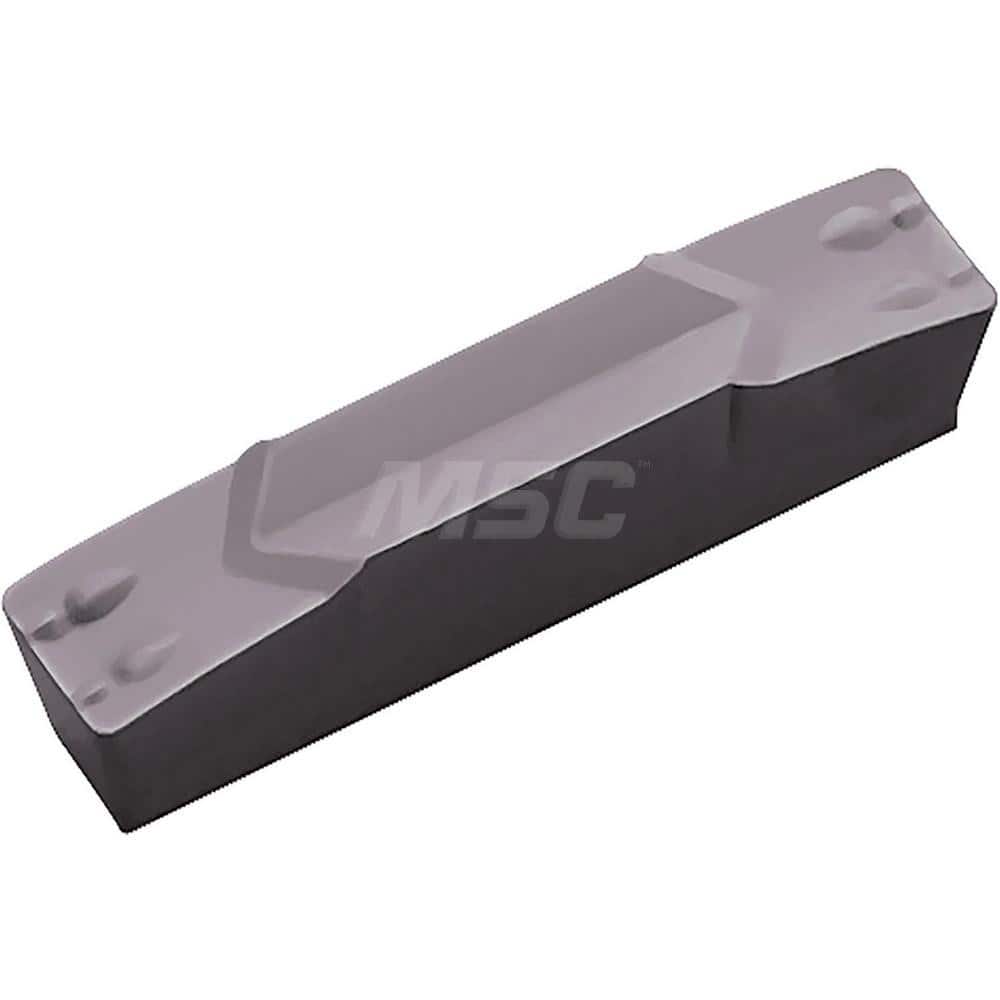

Grooving Insert: GMM4020040MW PR915, Solid Carbide TiAlN Finish, Neutral, 4 mm Cutting Width, 25 mm Max Depth, Series KGM
Item #: 18292839
Brand: Kyocera
Model #: TJG12820
Product Specifications
| Insert Style | GMM |
| Insert Size | 4020040 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR915 |
| Cutting Width (mm) | 4.00 |
| Maximum Depth of Cut (mm) | 25.00 |
| Insert Holding Method | Clamp |
| Cutting Height (mm) | 4.30 |
| Insert Hand | Neutral |
| Corner Radius (mm) | 0.40 |
| Maximum Depth Of Cut Range (mm) | 20.00+ |
| Lead Angle | 0 |
| Rake | Positive |
| Cutting Tool Application | Traversing; External Grooving |
| Series | KGM |
| Coating Process | PVD |
| Iso Code | GMM4020040MWPR915 |
| Manufacturers Catalog Number | GMM4020040MWPR915 |
| Minimum Groove Width (mm) | -0.05 |
| Maximum Groove Width (mm) | 0.05 |
| Chip Breaker | MW |
| Full Radius | No |
| Overall Width | 4.00 |
| Coating/Finish | TiAlN |
| Number Of Cutting Edges | 2 |
