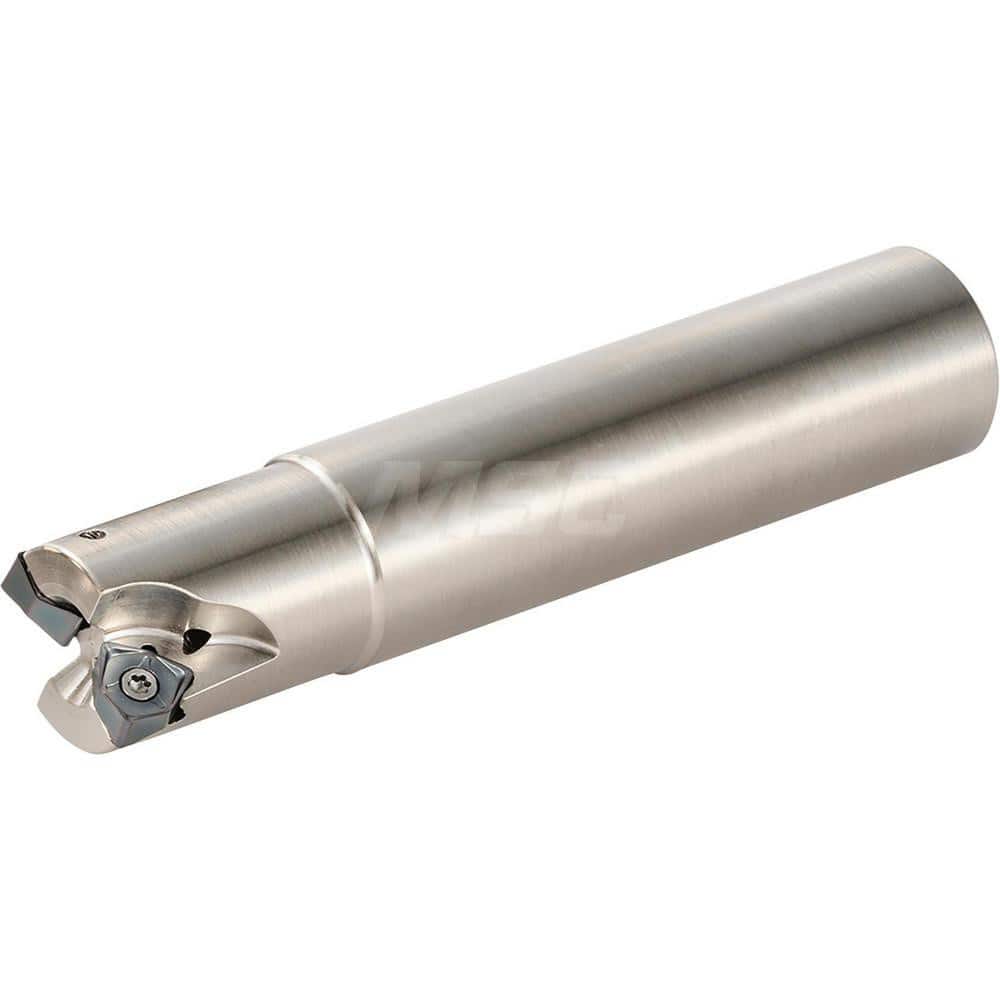

Indexable Square-Shoulder End Mill: MFWN90080RS32057T, 3.1496'' Cut Dia, Cylindrical Shank Uses 7, Through Coolant, 110.00 mm OAL
Item #: 18291682
Brand: Kyocera
Model #: THN08536
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 3.1496 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Insert Holding Method | Screw |
| Overall Length (mm) | 110.00 |
| Tool Material | Steel |
| Series | MFWN |
| Lead Angle | 0 |
| Head Length (mm) | 30.00 |
| Maximum RPM | 10900 |
| Complete Insert Compatibility | WNGT080608FN-AM; WNMU080608EN-SM; WNMU080608EN-GH; WNMU080604EN-GM; WNEU080608EN-GL; WNMU080608EN-GM |
| MSC/Manufacturer Number | MFWN90080RS32057T |
| Hand of Holder | Right |
| Multi-Use Tool | Yes |
| ISO Number | MFWN90080R-S32-05-7T |
| Manufacturers Catalog Number | MFWN90080RS32057T |
| Number Of Flutes | 7 |
| Number Of Cutter Inserts | 7 |
| Coolant Through | Yes |
