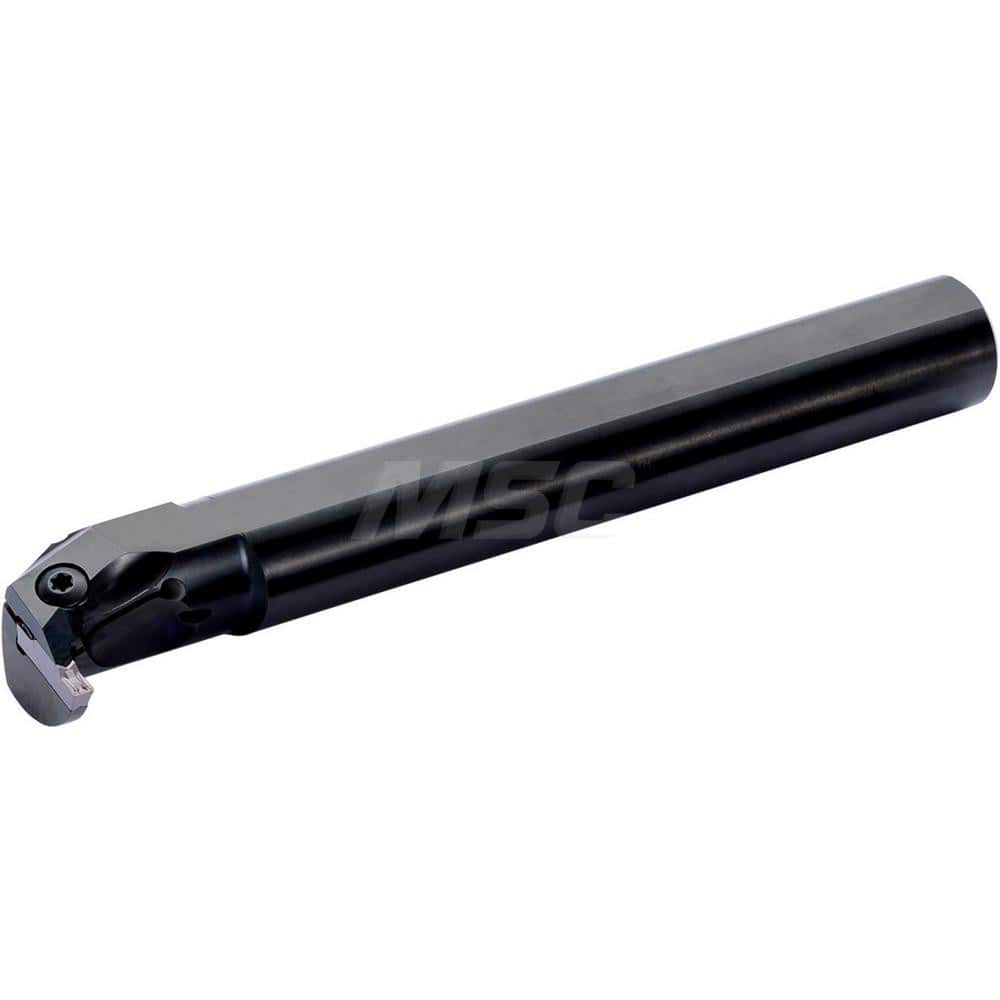

Indexable Grooving Toolholder: KGDIR4032B4, Internal Right Hand, Through Coolant
Item #: 18290478
Brand: Kyocera
Model #: THC14543
Product Specifications
| Internal or External | Internal |
| Toolholder Type | Non-Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 11.00 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 4.00 |
| Toolholder Style | KGDI |
| Insert Holding Method | Screw |
| Insert Compatibility | GDM4?GMI; GDM5?CM; GDM5?GMI; GDM4?CM |
| Shank Width/Diameter (mm) | 32.00 |
| Shank Height (mm) | 32.00 |
| Series | KGDI |
| Overall Length (mm) | 220.00 |
| Multi-use Tool | No |
| Cutting Tool Application | Internal Grooving |
| Vibration Dampening | No |
| Coolant Hole Diameter (mm) | 6.00 |
| Coolant Hole Diameter (Decimal Inch) | 0.2362 |
| Maximum Bore Depth (Decimal Inch) | 40.0000 |
| Manufacturers Catalog Number | KGDIR4032B4 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
