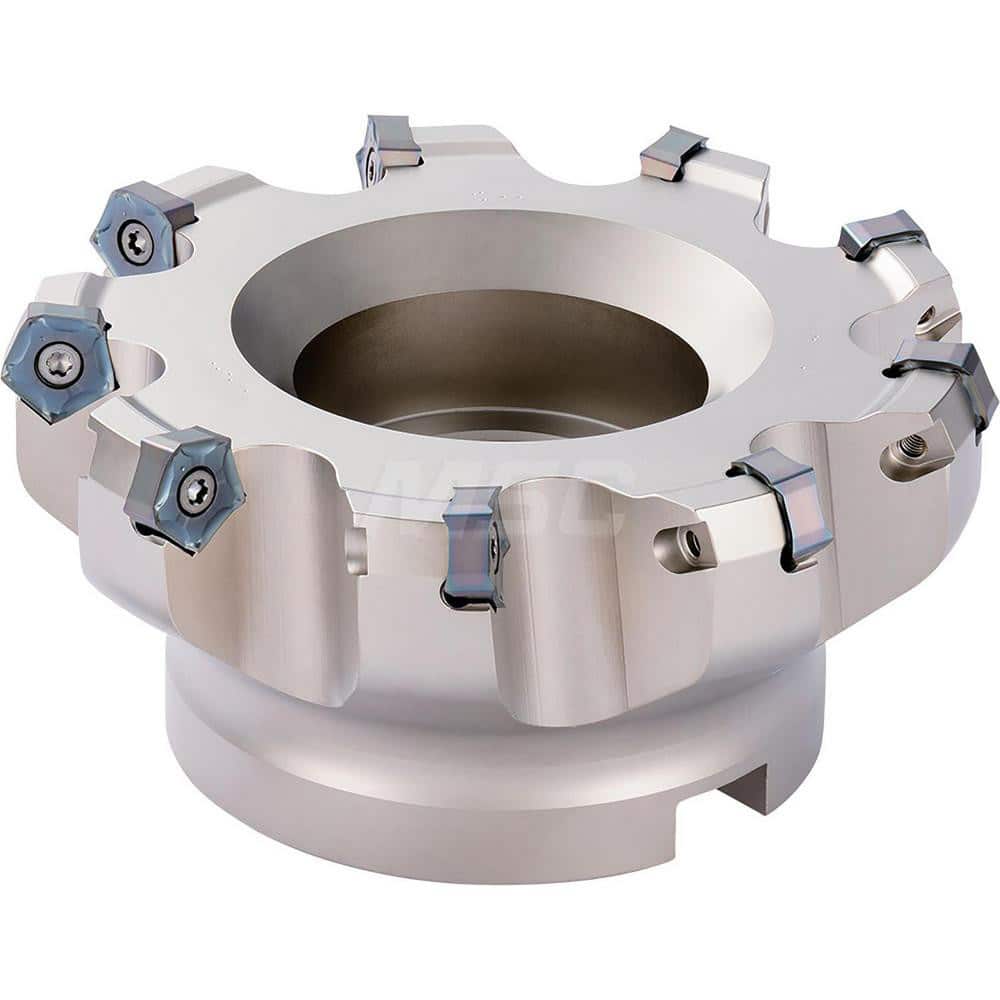

Kyocera MFLN 90080R4TM Metric Bore Diameter, Standard Pitch, 4 Flute, 90 Degree Face Mill with a 80.00mm Cutting Diameter for Shouldering, Facing Applications
Item #: 18288969
Brand: Kyocera
Model #: THN08443
Product Specifications
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 20.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Inch) | 27 |
| Arbor Hole Diameter (Decimal Inch) | 27.0000 |
| Compatible Insert Size Code | LOGU221616ER-GM; LOGU2216PAER-GM |
| Cutter Style | Tangential |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Series | MFLN |
| Overall Height (Mm - 5 Decimals) | 50.00 |
| Keyway Width (Decimal Inch) | 0.4882 |
| Hub Diameter (mm) | 2.36 |
| Hub Diameter (Decimal Inch) | 2.3600 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | MFLN90080R4TM |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 4 |
| Number Of Flutes | 4 |
