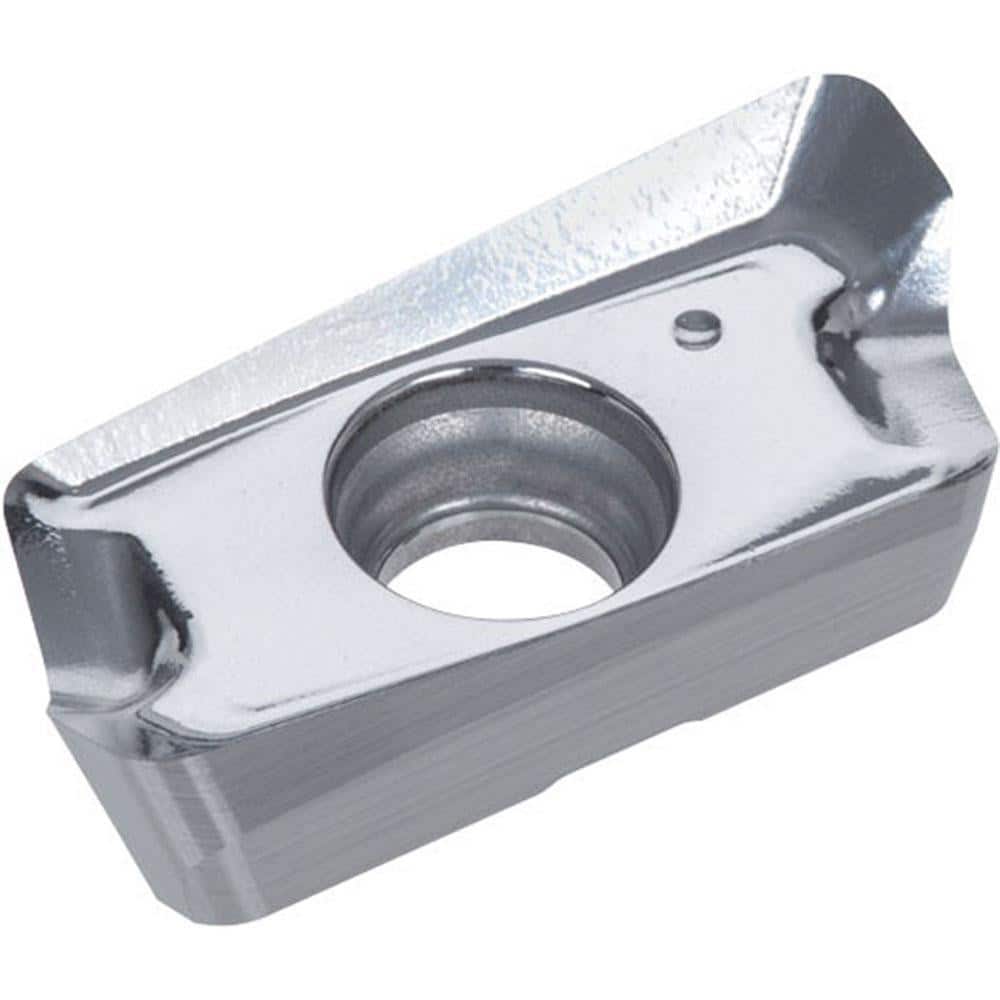

Milling Insert: KS05F, Solid Carbide N/A Finish,
Item #: 18275891
Brand: Tungaloy
Model #: 6873814
Product Specifications
| Insert Style | AVGT |
| Insert Size Code | 12 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | KS05F |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0157 |
| Insert Hand | Right Hand |
| Series | AVGT |
| Coating Process | Uncoated |
| Maximum Depth of Cut (Decimal Inch) | 0.4530 |
| Number Of Cutting Edges | 2 |
| Cutting Edge Effective Length (Decimal Inch) | 0.4650 |
| Insert Shape | Parallelogram |
| Rake | Positive |
| Primary Workpiece Material | Non-Ferrous Metal; Superalloy; Cast Iron |
| Primary Workpiece Material Code | S; K; N |
| Chip Breaker | AM |
| Coating/Finish | Uncoated |
| Thickness (Decimal Inch - 4 Decimals) | 0.1420 |
