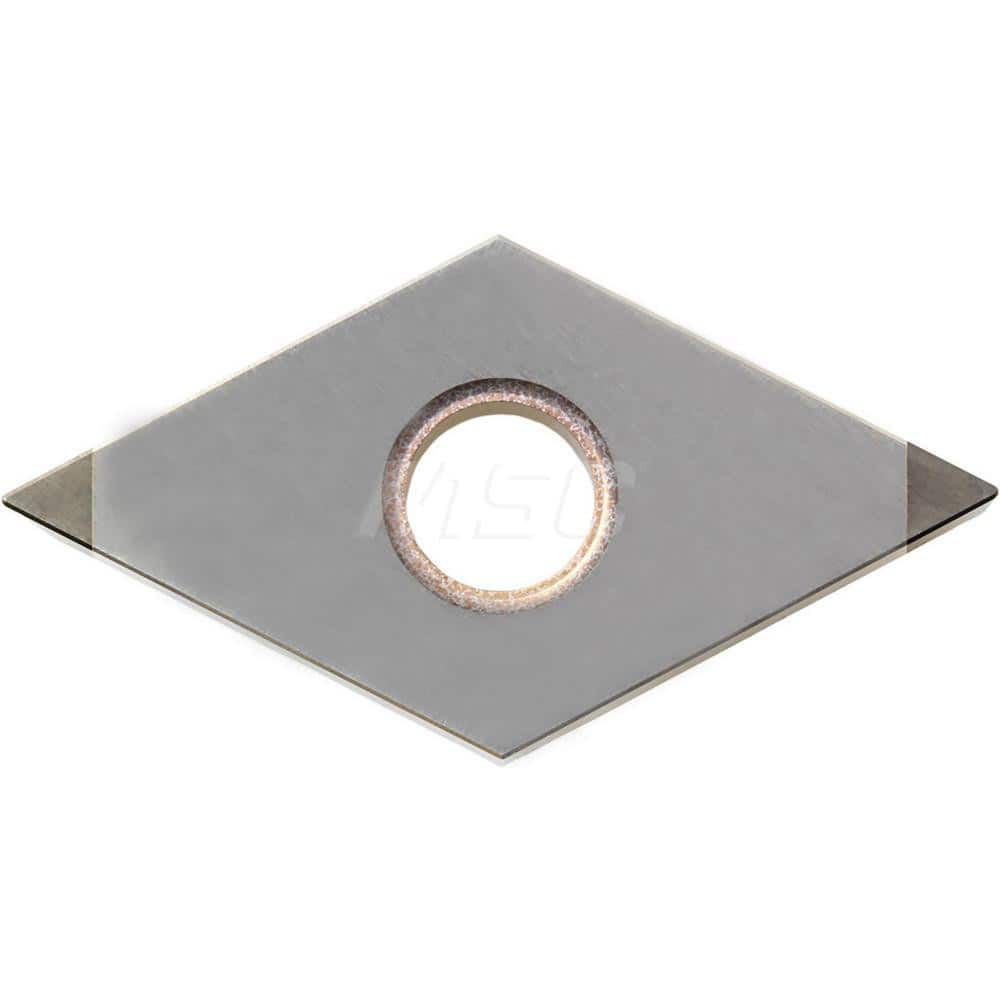

Kyocera DNGA 443S00730MET KBN05M Grade CBN, 0 Degree, Diamond, Negative Rake Angle, Neutral Turning Insert for Continuous and Finishing-Medium in (H) Hardened Materials
Item #: 18261040
Brand: Kyocera
Model #: TBN02232
Product Specifications
| Insert Style | DNGA |
| Insert Shape Code | D |
| Insert Size Code | 443 |
| Insert Shape | Diamond |
| Clearance Code | N |
| Tolerance Code | G |
| Insert Material | Cubic Boron Nitride |
| Manufacturer Grade | KBN05M |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Inscribed Circle (Inch) | 1/2 |
| Insert Holding Method | Screw; Clamp |
| Width (Inch) | 1/2 |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/4 |
| Corner Radius (Decimal Inch) | 0.0472 |
| Included Angle | 55.0 |
| Relief Angle | 0 |
| Rake | Negative |
| Primary Workpiece Material | H |
| Iso Code | DNGA150612S01730MET |
| Manufacturers Catalog Number | DNGA443S00730METKBN05M |
| Chip Breaker | A |
| Style | DNGA |
| Full Radius | No |
| Coating/Finish | Megacoat |
| Multi-Use Application | External Turning; Copying; Boring |
