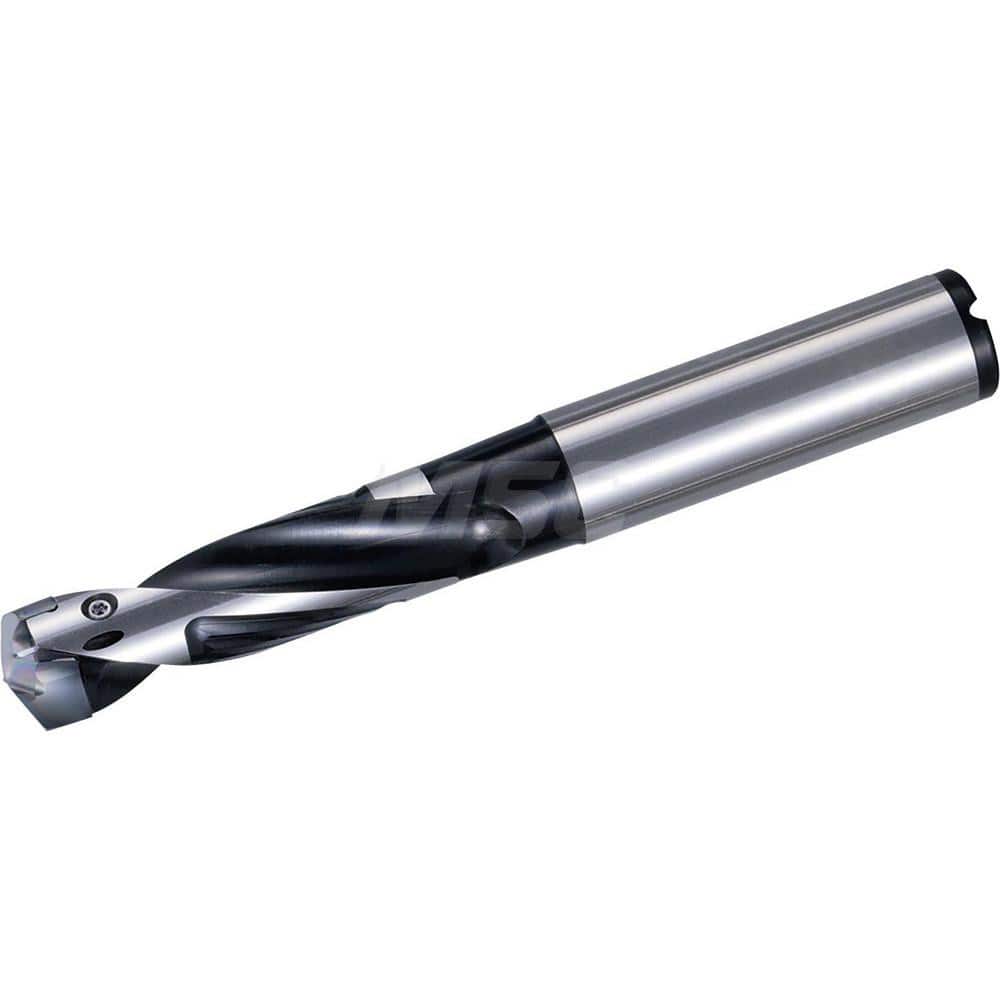

Replaceable Tip Drill: 18 to 18.99 mm Drill Dia, 57 mm Max Depth, 20 mm Straight-Cylindrical Shank Seat Size 18, 135 mm OAL, Through Coolant
Item #: 18260646
Brand: Kyocera
Model #: THD08180
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.7087 |
| Minimum Drill Diameter (mm) | 18.00 |
| Maximum Drill Diameter (mm) | 18.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.7476 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (mm) | 57.00 |
| Shank Type | Straight-Cylindrical |
| Insert Style | DA |
| Insert Seat Size | 18 |
| Shank Diameter (mm) | 20.00 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Overall Length (mm) | 135.00 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length | 85.00 |
| Shank Length (mm) | 50.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 37 |
