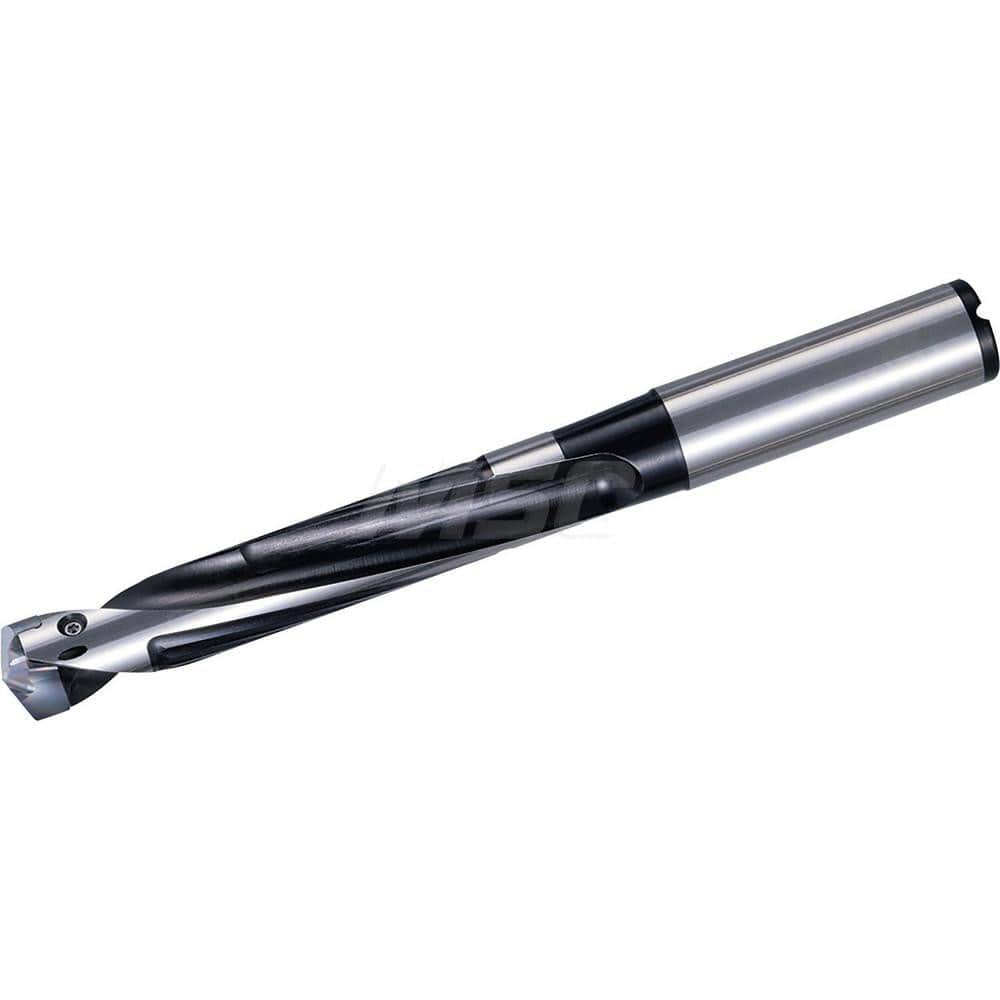

Replaceable Tip Drill: 11 to 11.49 mm Drill Dia, 57.5 mm Max Depth, 12 mm Straight-Cylindrical Shank Seat Size 11, 120 mm OAL, Through Coolant
Item #: 18259986
Brand: Kyocera
Model #: THD08111
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4331 |
| Minimum Drill Diameter (mm) | 11.00 |
| Maximum Drill Diameter (mm) | 11.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4524 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 57.50 |
| Shank Type | Straight-Cylindrical |
| Insert Style | DA |
| Insert Seat Size | 11 |
| Shank Diameter (mm) | 12.00 |
| Maximum Drill Depth Range (mm) | 40.00 to 60.00 |
| Overall Length (mm) | 120.00 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length | 75.00 |
| Shank Length (mm) | 45.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 48 |
