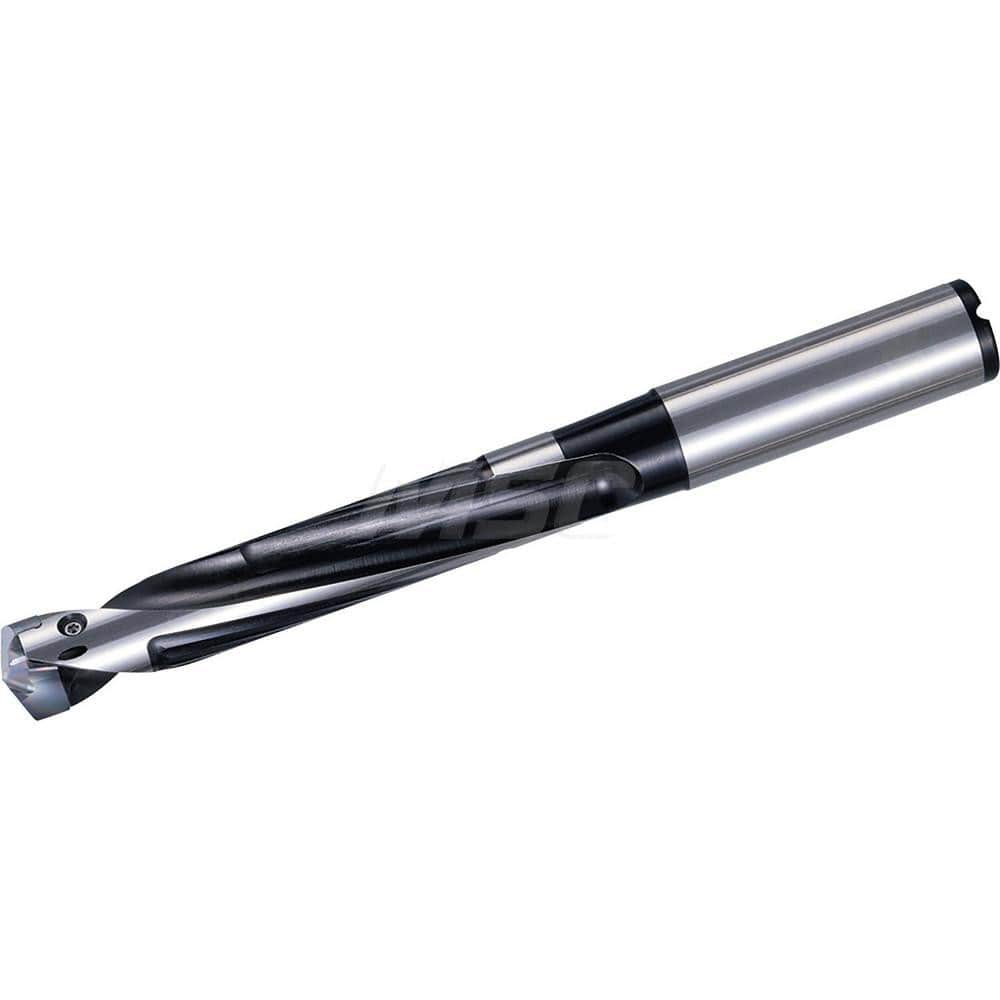

Replaceable Tip Drill: 12 to 12.49 mm Drill Dia, 62.5 mm Max Depth, 14 mm Straight-Cylindrical Shank Seat Size 12, 126 mm OAL, Through Coolant
Item #: 18259937
Brand: Kyocera
Model #: THD08121
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.4724 |
| Minimum Drill Diameter (mm) | 12.00 |
| Maximum Drill Diameter (mm) | 12.49 |
| Maximum Drill Diameter (Decimal Inch) | 0.4917 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (mm) | 62.50 |
| Shank Type | Straight-Cylindrical |
| Insert Style | DA |
| Insert Seat Size | 12 |
| Shank Diameter (mm) | 14.00 |
| Maximum Drill Depth Range (mm) | 60.00 to 80.00 |
| Overall Length (mm) | 126.00 |
| Series | DRA |
| Toolholder Style | SS |
| Body Length | 81.00 |
| Shank Length (mm) | 45.00 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 51 |
