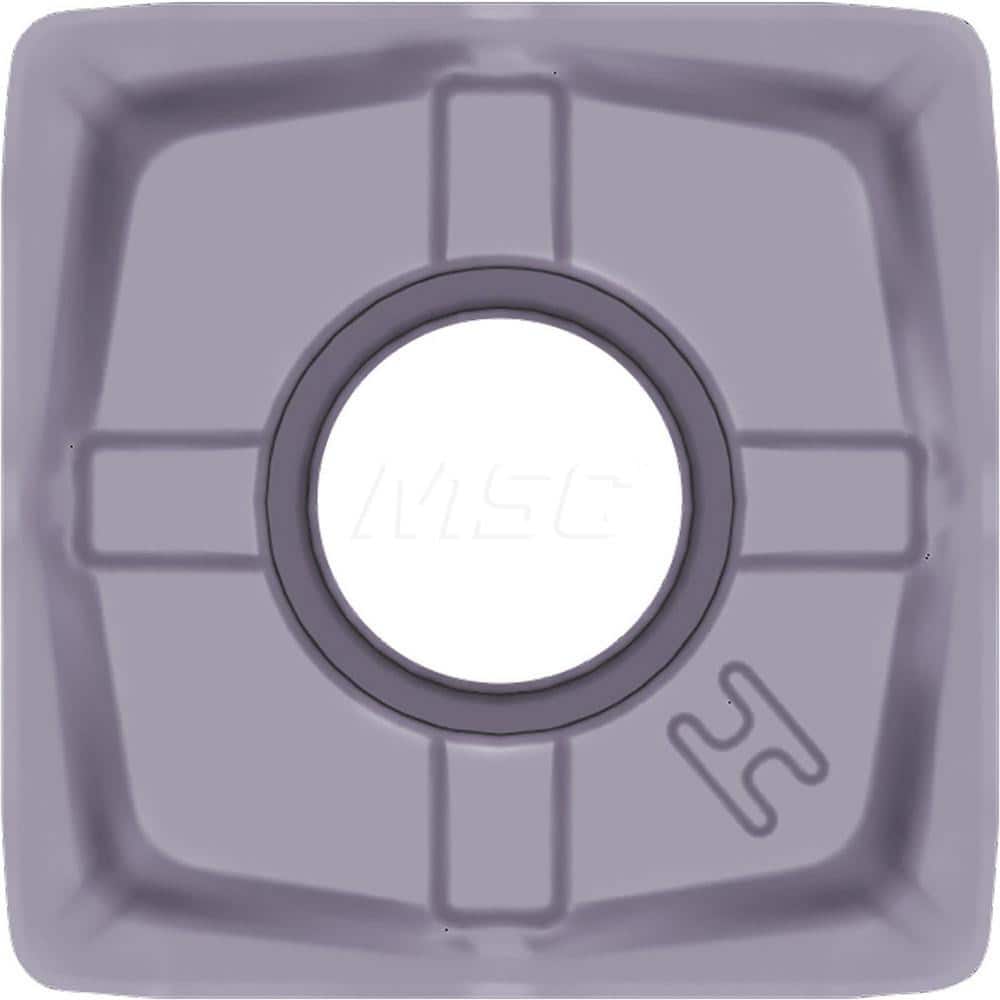

Kyocera SNMU 130508ENGH PR1525 Grade PVD Carbide, 90 Degree Square, Negative Rake Angle, Neutral Milling insert for Roughing in (P) Free-Cutting Steel
Item #: 18257956
Brand: Kyocera
Model #: TLB05404
Product Specifications
| Insert Style | SNMU |
| Insert Size | 130508 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1525 |
| Inscribed Circle (mm) | 13.00 |
| Corner Radius (mm) | 0.80 |
| Insert Hand | Neutral |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.70 |
| Maximum Depth of Cut (mm) | 13.00 |
| Rake | Negative |
| Ansi Code | SNMU130508ENGHPR1525 |
| Iso Code | SNMU130508EN-GH |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SNMU130508ENGHPR1525 |
| Cutter Series Compatibility | MFSN |
| Chip Breaker | GH |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Thickness (mm) | 5.51 |
| Coating/Finish | Megacoat Nano |
| Length | 13.00 |
| Width (Mm - 2 Decimals) | 13.00 |
