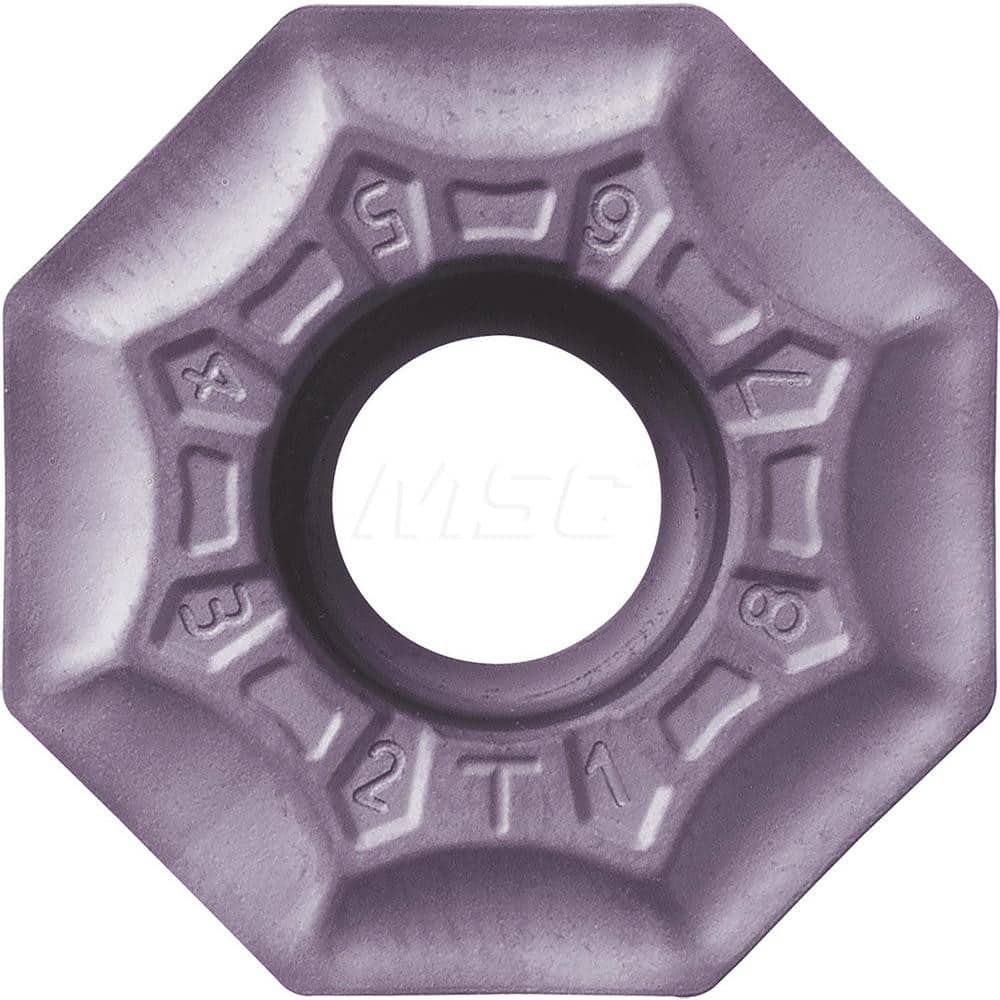

Kyocera OFMT 050405ENGT PR1210 Grade PVD Carbide, Octagon, Positive Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron
Item #: 18257915
Brand: Kyocera
Model #: TKA05021
Product Specifications
| Insert Style | OFMT |
| Insert Size | 050405 |
| Insert Material | Solid Carbide |
| Manufacturer Grade | PR1210 |
| Inscribed Circle (mm) | 13.35 |
| Corner Radius (mm) | 0.50 |
| Insert Hand | Neutral |
| Coating Process | PVD |
| Hole Diameter (Mm) ( - 0 Decimals) | 4.60 |
| Maximum Depth of Cut (mm) | 5.00 |
| Rake | Positive |
| Ansi Code | OFMT050405ENGTPR1210 |
| Iso Code | OFMT050405EN-GT |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | OFMT050405ENGTPR1210 |
| Cutter Series Compatibility | MOF |
| Chip Breaker | GT |
| Cutting Direction | Neutral |
| Shape | Octagon |
| Insert Holding Method | Screw |
| Thickness (mm) | 4.83 |
| Coating/Finish | Megacoat |
| Length | 5.00 |
| Width (Mm - 2 Decimals) | 13.35 |
