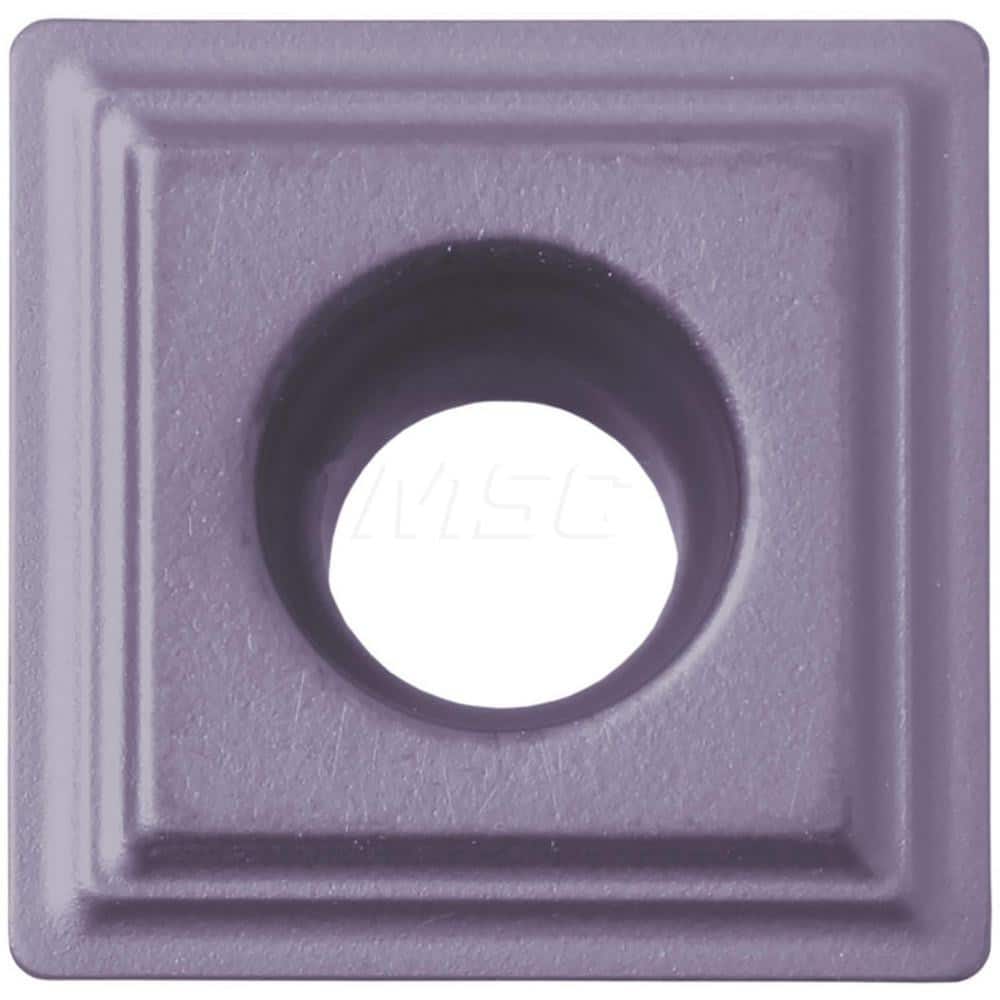

Kyocera SPMT 090308EZ PR1210 Grade PVD Carbide, Square, Positive Rake Angle, Neutral Milling Insert for Roughing in (K) Gray Cast Iron, (K) Nodular Cast Iron
Item #: 18257741
Brand: Kyocera
Model #: TKA05476
Product Specifications
| Insert Style | SPMT |
| Insert Size | 090308 |
| Insert Material | Solid Carbide |
| Width (Inch) | 3/8 |
| Manufacturer Grade | PR1210 |
| Length (Inch) | 3/8 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness Range (Decimal Inch) | 0.1250 to 0.1500 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Insert Hand | Neutral |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1339 |
| Maximum Depth of Cut (mm) | 9.00 |
| Rake | Positive |
| Ansi Code | SPMT090308EZPR1210 |
| Iso Code | SPMT090308E-Z |
| Cutting Edge Style | Honed |
| Manufacturers Catalog Number | SPMT090308EZPR1210 |
| Cutter Series Compatibility | MEF |
| Chip Breaker | Z |
| Cutting Direction | Neutral |
| Shape | Square |
| Insert Holding Method | Screw |
| Thickness (mm) | 3.18 |
| Coating/Finish | Megacoat |
| Thickness (Decimal Inch - 4 Decimals) | 0.1252 |
